510160112

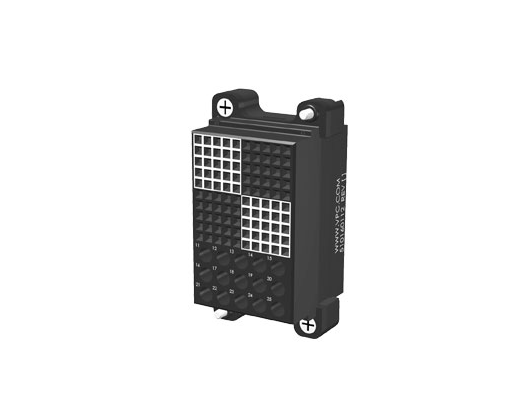

Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts

Specifications
Material Black high-temp thermoplastic
Temperature Range Operating:
-55ºC to 125ºC
Non Operating:
-65ºC to 220ºC
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 100/15
Module Positions Needed 1

Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts

This module comes fully loaded with twin female contacts (p/n 610138200),  iCon modules mount from the rear of the iCon/i1 receiver allowing installation and removal of pre-wired cable blocks.

 Primary mating module 510161107. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
