Signal / Micro Power/ Micro Coax, Module, Receiver, TriPaddle, iCon Series, 24/30 Position

Material FR4
Temperature Range Operating:
-55ºC to 125ºC
Non Operating:
-55ºC to 140ºC
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 24/30
Module Positions Needed 1

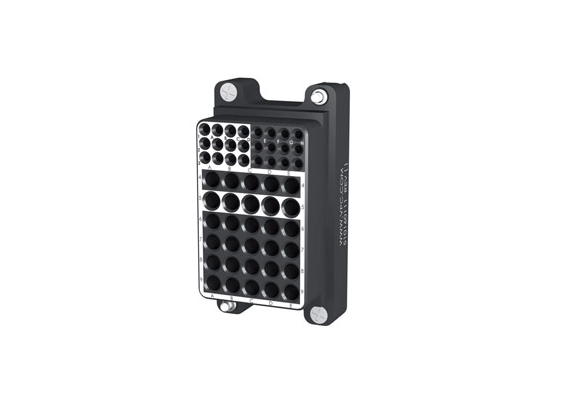

TriPaddle Signal / Micro Power/ Micro Coax, Module, Receiver, iCon, 24/30 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks. The modules also have captive Phillips head screws. Refer to User's Manual for power applications with this module.

Primary mating module 510161111. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
