The Customer

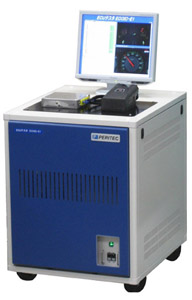

Peritec, a SELECT NI Alliance member in Japan, designed, integrated, and built a Mixed Signal Multi IC Tester using VPC's G6 Mass Interconnect Solution. This tester is intended for the automotive market, for testing electrical devices such as ECUs (Electrical Control Units), engine, audio, lock-key, airbag, navigation system, etc.

The Solution

The unit is integrated with National Instruments (NI) PXI cards and uses NI LabView. VPC's Mass Interconnect G6 solution enables quick and easy engaging and disengaging of the ITA/figure; it is attached to the PCB/IC holder, on top of the tester. The solution allows for testing of both the ECU in box and Printed Circuit Boards (PCBs). With the robust G6, the user can easily connect to a variety of DUTs while using only one test unit. VPC's Mass Interconnect interface is compatible with all PXI, VXI, and LXI platforms.



Simultaneous ECU Testing with High Density Handheld Connectors

A manufacturer of ECUs for major automotive companies in Japan has integrated 75 iCon receivers and 10 iCon ITAs into their thermal test system.

This system is comprised of a 10-bay thermal chamber. Each fixture contains the DUT (ECUs) and an iCon receiver. The fixtures can contain up to 7 ECUs at one time. The receiver connects in the bay to the iCon ITA (double-ended), which then connects to the test instrumentation. The ECUs are tested for operation in temperatures ranging from -40 °C to 105°C.
