When simulating ECU peripherals like camshafts or ABS wheel sensors, PXI instruments are often useful to help acquire the necessary range to drive these signals. Fortunately, there is a wide selection of PXI voltage amplifiers, function generators, and voltage attenuators available, and VPC offers a range of off-the-shelf solutions to support them.

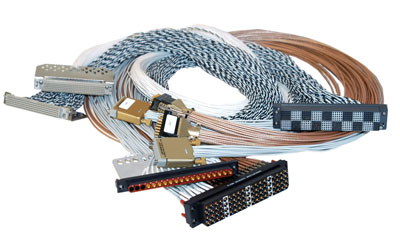

For example, a 5-channel voltage amplifier is ideal for increasing output voltage of other PXI modules, and can be connected (and preserved) with a 25-Pin Female D-Sub connector that adapts to our 64-position TriPaddle cable assembly (p/n 540014010101). With 39 extra positions still available, multiple PXI modules can be routed to use the same VPC module, effectively consolidating I/O to the DUT into as few cables necessary.
