PCB Adapters - VTAC

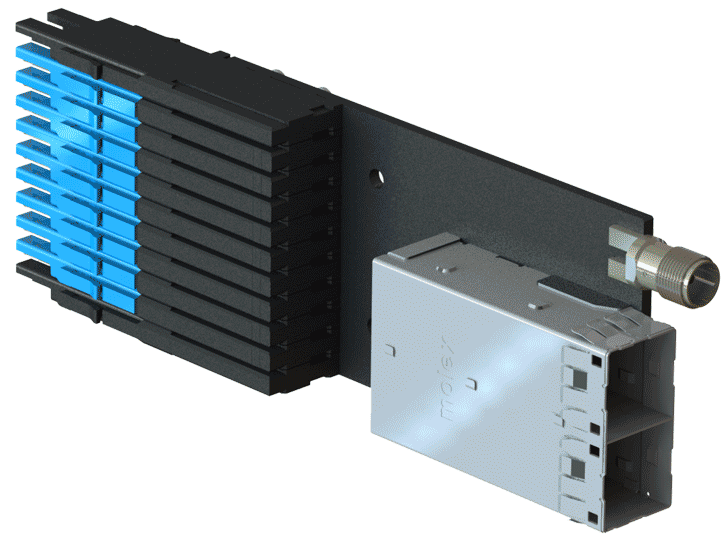

VTAC comes in a right-angle PCB configuration which is ideal for a variety of applications that require a PCB solution.  Modular and compact, VTAC right angle inserts can be used with strain relief plates to relieve PCBs and to secure COTS connectors in place.

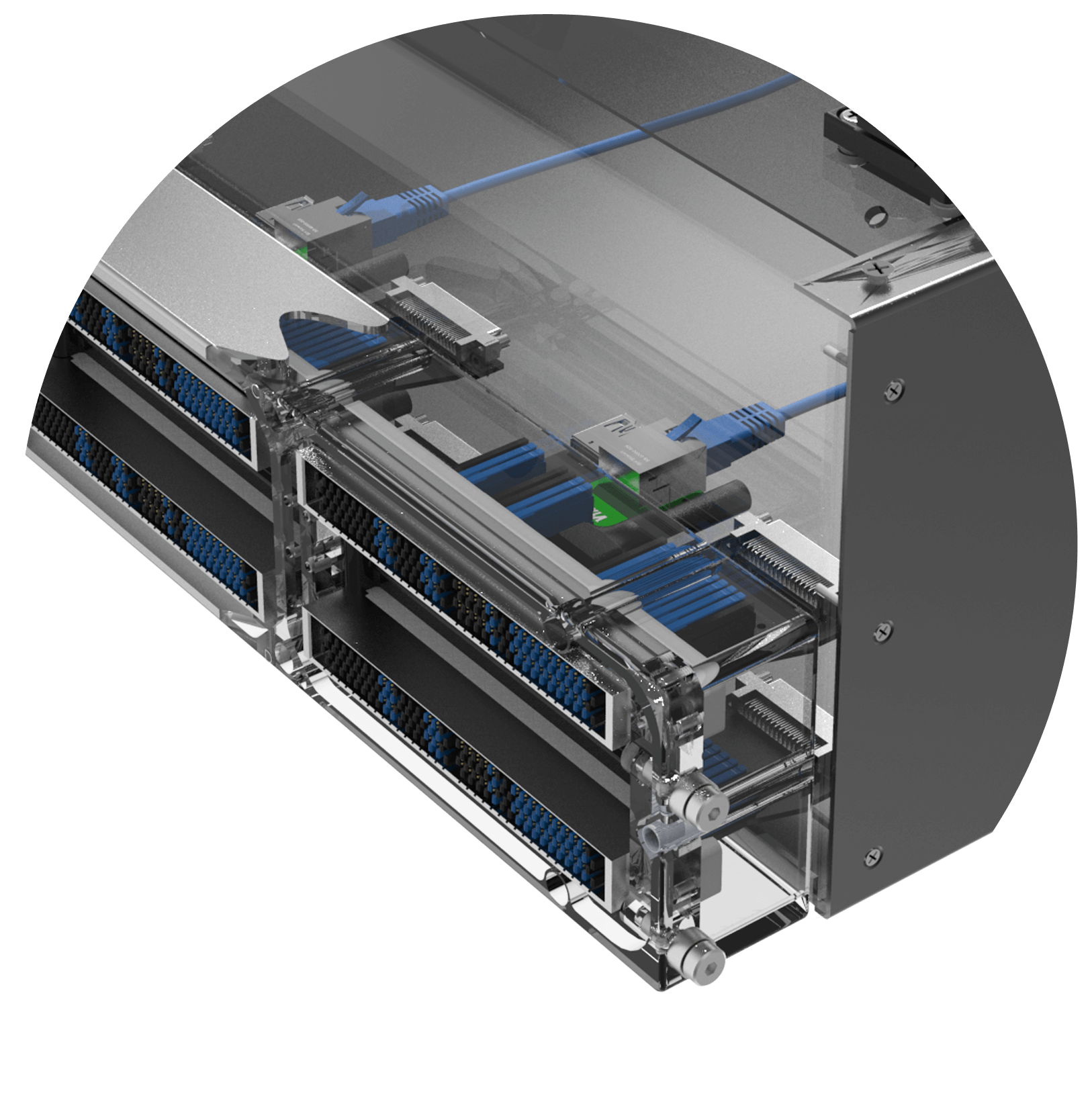

VTAC PCB Adapters & ITA Enclosures

VTAC PCB Adapters make building a high-speed wired ITA enclosure easy and customizable. A high-speed VTAC ITA solution offers the following benefits:

  • Multiple protocols within the same SIM module
  • A custom HSD solution that consolidates all your high-speed signals
  • Easy maintenance with off-the-shelf cables
  • Transfer speeds greater than 10 Gbps per differential pair

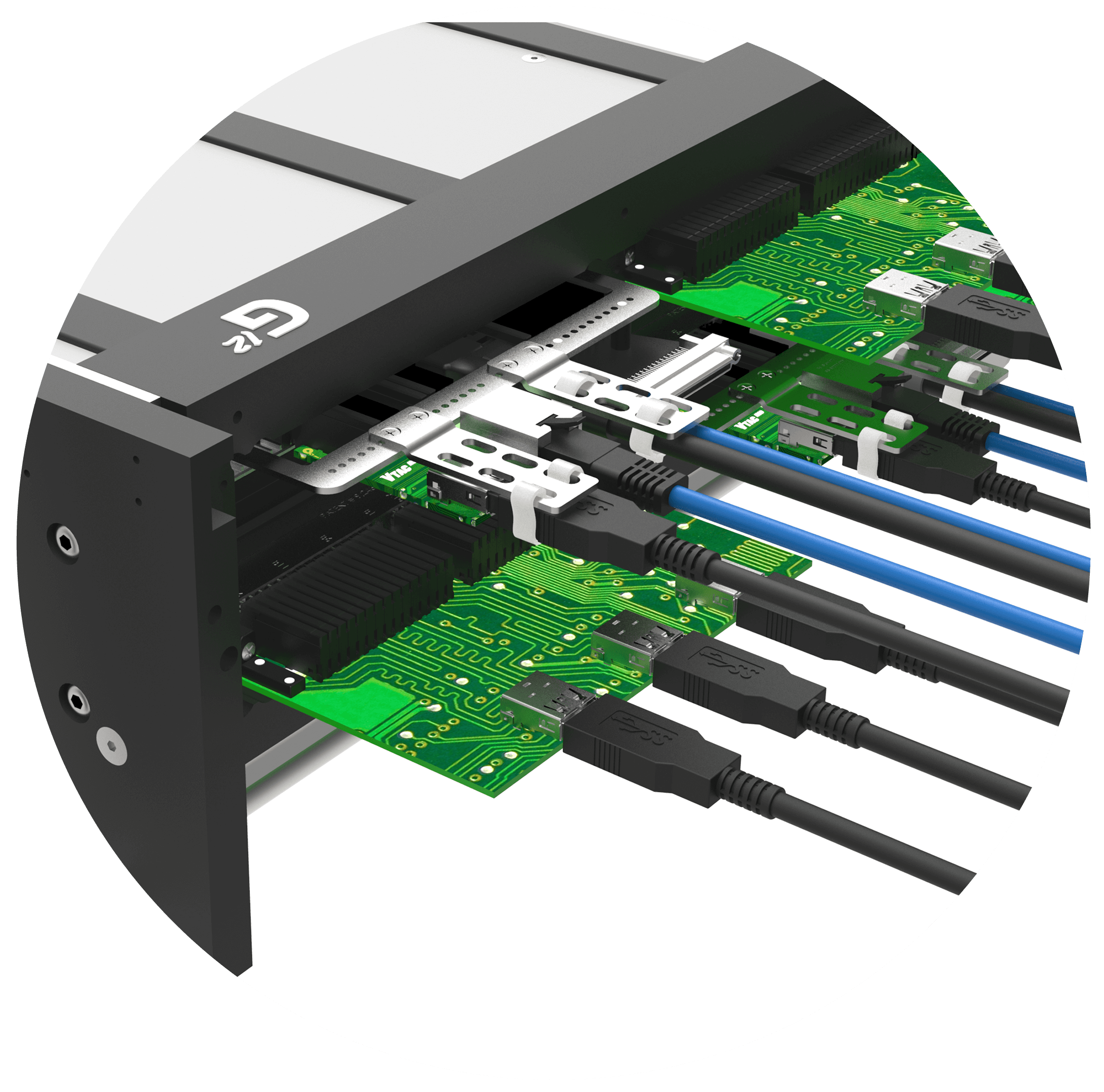

VTAC PCB Adapters & Receivers

VTAC PCB Adapters can be used in any interface that accepts 90 Series modules. Connect VTAC PCB Adapters to an instrument chassis with off-the-shelf cables. Once the receiver and ITA are configured, engaging and disengaging high speed connections is easy and repeatable.

  • Broker all test points through a single interface, requiring only a single connection to maintain
  • Configurable interface with HSD alongside coax, signal, power, pneumatic, vacuum, and fiber optic


SIM PCB Adapters

Mix and match small modular boards to create a custom solution. SIM PCB adapters provide flexibility and modularity where custom PCBs cannot. Move PCB adapters around to optimize space, mix protocols and match with patchcords as your requirements change. Compatible with popular high speed protocols like:

  • USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1),
  • Cat6
  • 12x Infiniband
  • DisplayPort
  • HDMI

VPC High Speed Solutions

PCB Adapter- ITA

  • PCB Adapter, ITA,  VTAC, to (6) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, ITA, SIM, VTAC, 16 Pos, 5 Slot, to (1) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, ITA, SIM, VTAC, 16 Pos, 6 Slot, to (1) Cat6
    PCB Adapter, ITA, SIM, VTAC, 32 Pos, 6 Slot, to (1) HDMI
    PCB Adapter, ITA, VTAC, to (2)  USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) RJ45 Connectors
    PCB Adapter, ITA, SIM, VTAC, 32 Pos, 6 Slot, to (1) DisplayPort

PCB Adapter- Receiver

  • PCB Adapter, Receiver, VTAC,  to (6) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, Receiver, SIM, VTAC, 16 Pos, 5 Slot, to (1) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, Receiver, SIM, VTAC, 16 Positions, 6 Slots, to (1) Cat6
    PCB Adapter, Receiver, SIM, VTAC, 96 Pos, 14 Slot, to (1) 12x InfiniBand
    PCB Adapter, Receiver, SIM, VTAC, 40 Pos, 6 Slot, to (1) HDMI
    PCB Adapter, Receiver, VTAC,  to (2)  USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) RJ45 Connectors
    PCB Adapter, Receiver, SIM, VTAC, 32 Pos, 6 Slot, to (1) DisplayPort
