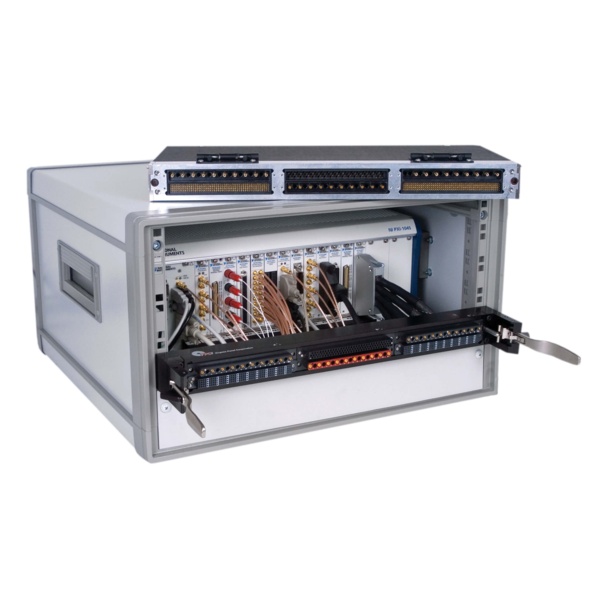

S6 Rack Mount

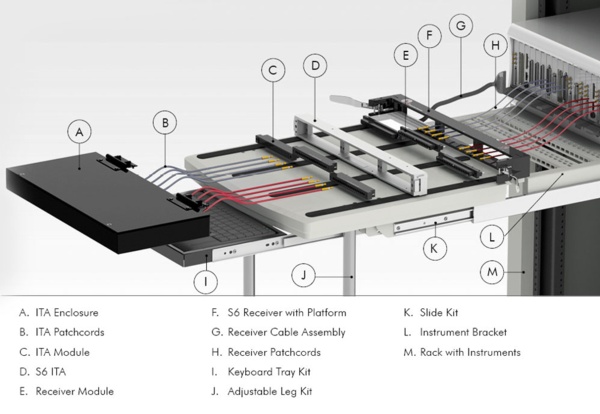

S6 Rack Exploded View

S6 Rack Mount

The S6 Rack Mount receiver is ideal for consolidating multiple test instruments and only occupies 1U of rack space. This low-profile makes it ideal for in-line test applications. The S6 receiver will support an ITA/fixture weight of 50 lbs. at 6”.

User Manual                   Compatible with 90 Series Modules

For more information, contact a Field Application Engineer.

Receiver

  • 310122100
    Receiver, S6, 6 Module
    310122103
    Receiver, S6, 6 Module, Inline, 1U

ITA

  • 410122100
    ITA, S6, 6 Module, 90 Series, incl protective cover
    410122103
    ITA, S6, 6 Module, Inline, 1U

Protective Cover

  • 310113432
    Protective Cover, S6, Receiver
    410112700
    Protective Cover, S6, ITA

Accessory

  • 310113435
    Platform Kit 15", S6, Receiver
    310113525
    Platform Kit 20", S6, Receiver

Rack Extender Kit

  • 310113430
    Rack Extender Kit, S6, 4" Deep

S6 Enclosure

  • 410112701
    Enclosure, S6, 1U Height, 8" Depth
    410112702
    Enclosure, S6, 1U Height, 4 Cable Clamps, 8" Depth
    410112703
    Enclosure, S6, 2U Height, 12" Depth
    410112712
    Enclosure, S6, 2U Height, 4 Cable Clamps, 12" Depth
