Receiver, G12, 12 Module, 15" Platform, for Slide Mount (slide kit required)*
Specifications | |
---|---|
Weight | 25.11 lbs [11.39 kg] |
Frame Material | Anodized and Powder Coated Aluminum |
Slide Material | Nickel Plated Steel |
Linkage, Handle, Latch | Stainless Steel |
Available Module Slots | 12 Positions |
Cycle Life | 20,000 Cycles |
Temperature | -55° C to 85° C |
Max. Weight Support | 180 lbs [81.65] |
Max. Mating Force | 620 lbs. [281.2 kg] |
Receiver, G12, 12 Module, 15" Platform, for Slide Mount (slide kit required)*
*Please note - This part number ships with the platform not attached to the receiver. Platform must be assembled after delivery.

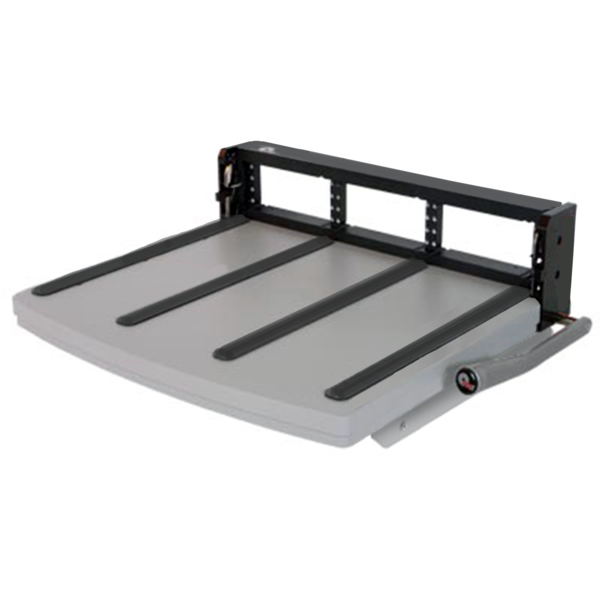

The 15" G12 Receiver is a slide-mounted receiver. The 15" platform provides a surface to hold fixtures or other tools and supports up to 180 lbs. The 15" platform configuration is not compatible with the optional leg kit.
This part number includes:
Slide kit, keying kit, instrument bracket, right side microswitch, and any other accessories must be purchased separately. Designed for VPC 90-Series modules.
