Specifications
Material	Black-PPS
Temperature	Operating • -55° C to 125° C Non Operating • -65° C to 225 ° C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Available Contact Positions	84 Signal/12 Thermocouple
Module Slots Needed	1

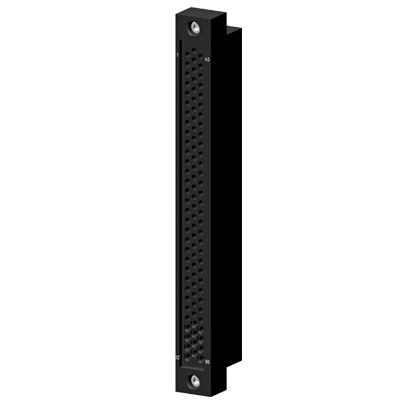

The 84/12 Position TriPaddle Thermocouple ITA Module allows for 84 Signal and 12 Thermocouple lines in one module position. The Module is made of Black-PPS, withstanding temperatures of 220 °C. Nomenclature is molded into the Modules.

	Part Number	Description
	610110108	TriPaddle Signal, Contact, ITA, 7 Amp, 20-24 AWG, 30µ" Gold
	610110113	TriPaddle Signal, Contact, ITA, 7 Amp, .025" Square Post for Wire Wrap, 30µ" Gold
	610110129	TriPaddle Signal, Contact, ITA, 10 Amp, 14-18 AWG, 30µ" Gold
	610110169	TriPaddle Signal, Contact, ITA, 7 Amp, 26-28 AWG, 30µ" Gold
	610113133	Thermocouple Contact, ITA, Chromel, Type K(°C)
	610113134	Thermocouple Contact, ITA, Alumel, Type K(°C)

	Part Number	Description
	510104261	TriPaddle Signal/Thermocouple Module, Receiver, 84/12 Position

	Part Number	Description
	510109296	Strain Relief Plate, ITA, 90 Series

Add To Quote
