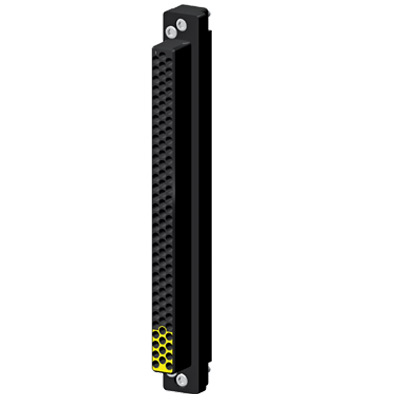

Specifications
Material	G-10 Epoxy Glass
Temperature	Operating • -55° C to 125° C Non Operating • -65° C to 140° C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Available Contact Positions	84 Signal/12 Thermocouple
Module Slots Needed	1

	Part Number	Description
	610110101	Signal, Contact, Receiver, TriPaddle, 7 Amp, 20-24 AWG
	610110128	Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
	610110167	Signal, Contact, Receiver, TriPaddle, 7 Amp, 26-28 AWG
	610110177	Signal, Contact, Receiver, TriPaddle, 10 Amp, 14-18 AWG
	610110179	Signal, Contact, TriPaddle, Receiver, 5 Amp, .025" Round Post
	610113131	Thermocouple Contact, Receiver, Chromel, Type K(°C)
	610113132	Thermocouple Contact, Receiver, Alumel, Type K(°C)
