Specifications
Current Rating	0.5 Amp @ 30 VAC
Temperature	-55° C to 85º C
Termination Resistance	10 mOHMs Typical
Insulation Resistance	500 MOHMs Min.
DWV	250 VAC Min.
Module Slots Needed	1

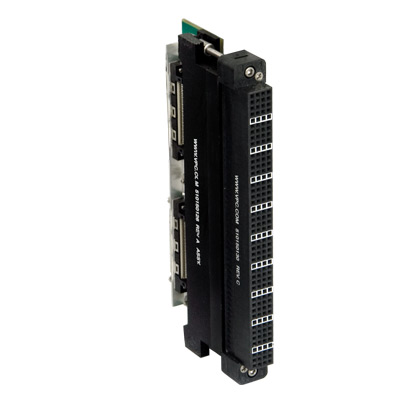

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Female VHDCI Connectors

Available PXI card solutions for NI PXI-2535 and PXIe-7868. Visit our Cable Solution Selector for all available options.

	Part Number	Description
	515109113	Cable Assembly, 68-Pin ML VHDCI, to 68 Pin FML SCSI, 18"
	515109114	Cable Assembly, 68 Pin ML VHDCI, to 68 Pin FML SCSI, 36"

	Part Number	Description
	510151105	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
	510151107	Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
	510151121	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB Mounting
	510151124	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

	Part Number	Description
	510109597	Module Accessory Kit, Quantity 26, 4-40 x 1.250" Socket Head Cap Screws Stainless Steel

	Part Number	Description
	510150126-1	PCB Adapter, Receiver, QuadraPaddle, 192 Position, to PCB-Mounted 2 x 68-Pin FML VHDCI, Includes 2 x 68-Pin ML VHDCI Dbl-End 2M Cables

Add To Quote
