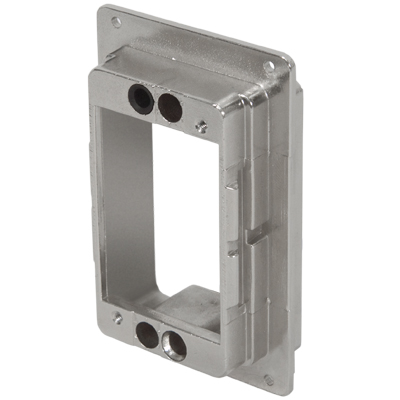

Receiver, i1, with Protective Cover
Specifications | |
---|---|
Weight | .10 lbs [.05 Kg] without protective cover |
Frame Material | Nickel Plated Aluminum Alloy |
Hardware Material | Stainless Steel Alloy |
Protective Cover Material | Low Density Polyethylene |
Available Module Slots | 1 |
Cycle Life | 10,000 Cycles |
Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
Temperature | -55° C to 105 ° C |
Receiver, i1, with Protective Cover
i1 accepts a single iCon module and allows a variety of signal, power and coaxial connections. A protective cover is included with the receiver. Other accessories, such as keying pin kits and strain relief, are available.
A backshell option is available with large cable clamp (see p/n 310113727).
