510161114

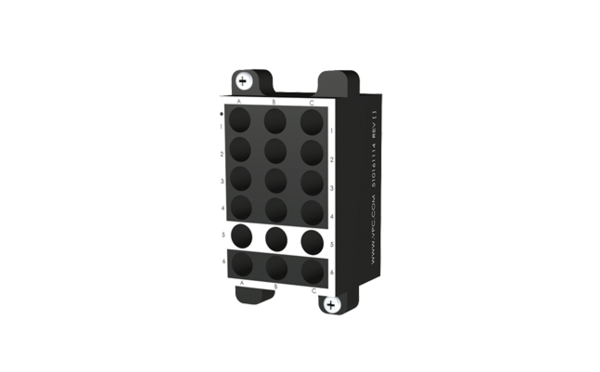

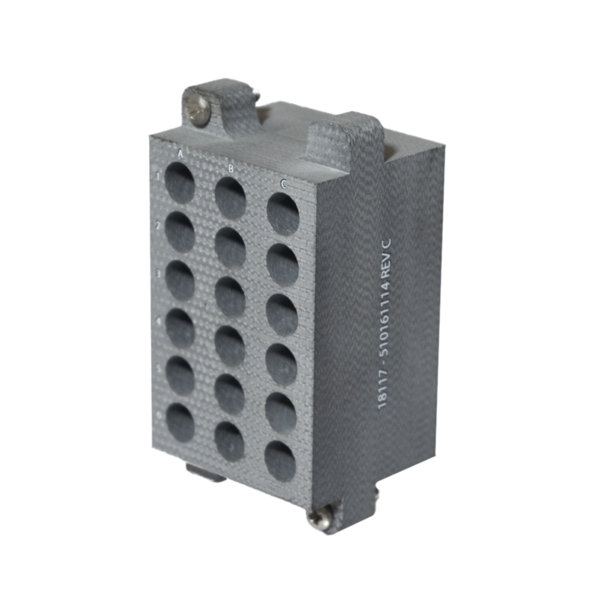

20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon, 18 Position

Specifications
Material FR4
Temperature Range Operating:
-55?C to 125?C
Non Operating:
-55?C to 140 ?C
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 18
Module Positions Needed 1

20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon, 18 Position

iCon modules mount from the rear of the iCon receiver and ITA and allow installation and removal of pre-wired cable blocks. The modules also have captive Phillips head screws. Refer to User's Manual for 20 GHz applications with this module.
