510180102

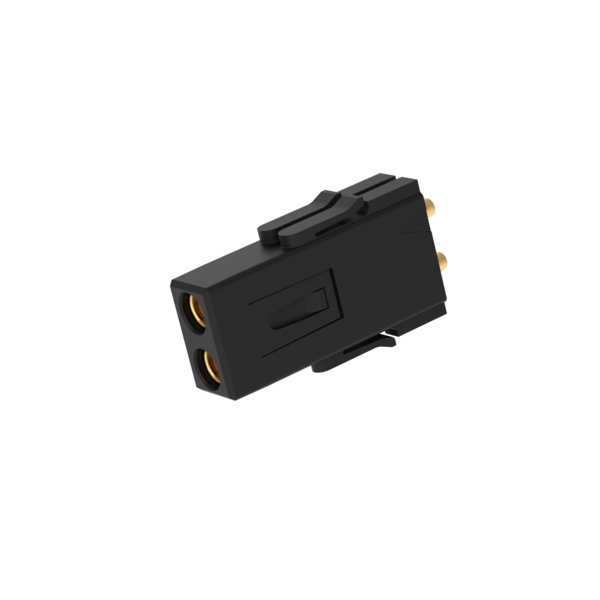

Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
| Specifications | |
|---|---|
| Operating Voltage & Current | 21 Amps Cont. |
| Contact Resistance | 1.5 mOhms Max. |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Contact Plating | 30µ” Au over 100µ” Ni |
| AVG Mating Force (lbs.) | 1.23 lb./ insert [558 g] |
Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
This insert contains 2 micropower contacts and is part of the Infinity Connector system. It is used in the 90 Series SIM Module and occupies 2 of the 34 slots in this module.
This insert comes loaded with contacts. Individual contacts sold separately p/n 610142106.
