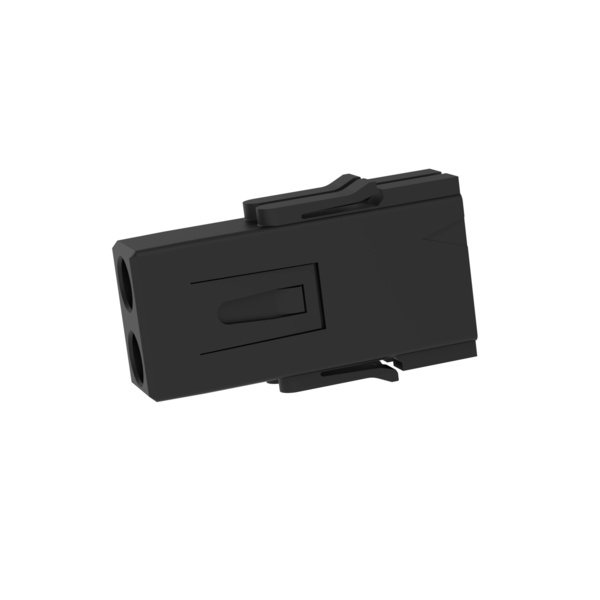

Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot (not loaded)
See p/n 510180102 to purchase loaded insert.
Not loaded with contacts. Contacts need to be purchased and loaded separately. Requires contact p/n 610142106 x 2.
Accessories and Related Parts
Contact - Receiver
Part Number
Description
Micro Power, Contact, Receiver
Insert - Micro Power
Micro Power, Insert, Receiver, SIM, 2 Pos, 2 Slot
Insert - Right Angle
Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot
Module - 90 Series Receiver
SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots
Tool- Extraction
Tool, Extraction, Micro Coax / Micro Power
Tool, Extraction, VTAC, Receiver and ITA
