Micro Power, Header Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot

Operating Voltage & Current 21 Amps Cont.
Contact Resistance 1.5 mOhms Max.
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Contact Plating 30µ” Au over 100µ” Ni
AVG Mating Force (lbs.) 1.23 lb./ insert [558 g]

Micro Power, Insert, Receiver/ITA, SIM, Right Angle, 2 Pos, 2 Slot

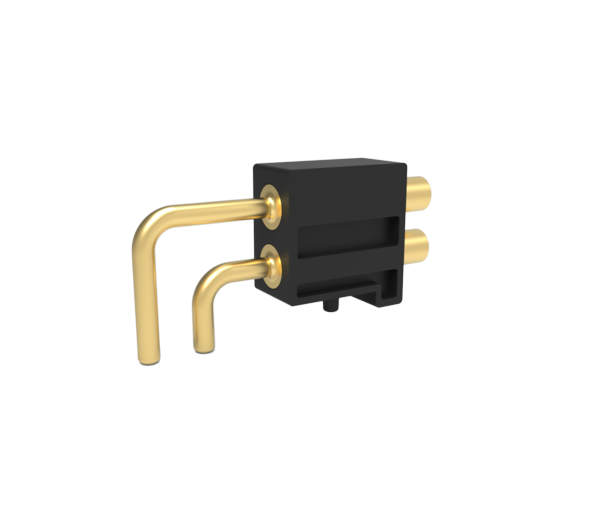

This header insert contains 2 right-angle micropower contacts and is designed for soldering directly to a PCB as part of the Infinity Connector system. It is used in the 90 Series SIM Module and occupies 2 of the 34 slots in this module.
