610104140

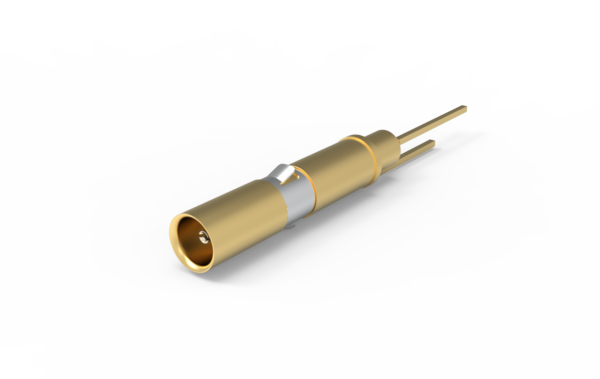

Mini Coaxial Contact, Receiver, with two .025" Square Posts for Wire Wrap

Specifications
Characteristic Impedance 50 Ohms
Frequency Range DC to 1 GHz
Insertion Loss 1.2 dB @ 1 Ghz
1.02 dB @ 500 Mhz
VSWR ≤ 1.06 @ 1 Ghz
Operating Voltage & Current 0.5 Amps Max. Continuous
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Insulation Resistance 1000 MOhms Min.
Contact Body Shield – Brass
Center Conductor – BeCu
Contact Plating Shield – 50µ" Au over 100µ" Ni
Center Conductor – 60µ" Au over 100µ" Ni
Cycle Life 20,000 Cycles
AVG Mating Force (lbs) 1.02
