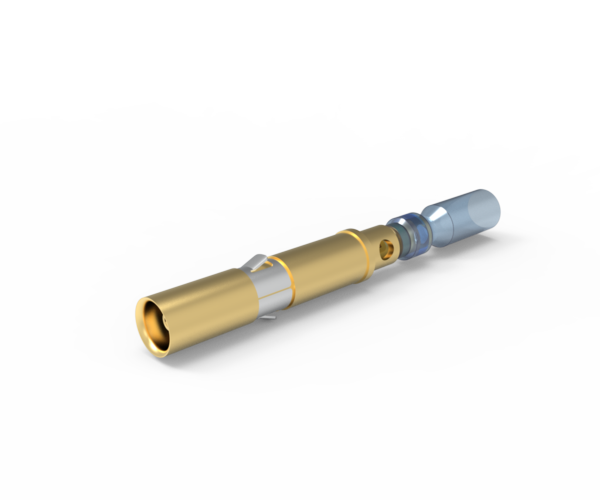

610104142
Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Shield – Brass Center Conductor – BeCu |
| Contact Plating | Shield – 30µ" Au over 100µ" Ni Center Conductor – 60µ" Au over 100µ" Ni |
| Contact Termination | Solder Sleeve |
| Insulator | PTFE |
| Mating Force | 1.5 lbs max [0.68 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50Ω |
| Frequency Range | DC to 2 GHz |
| VSWR | ≤ 1.2 @ 2 Ghz |
| Insertion Loss | ≤ 0.05 dB @ 500 Mhz ≥ -0.3 dB @ 2 Ghz |
| DWV | 1500 VDC Min. |
| Contact Resistance | ≤ 5 mΩ |
| Cable Specifications | RG316 & RG178 |
| Environmental Specifications | |
| Operating Temperature | -50°C to +105°C |
| Insulation Resistance | 1000 MΩ min. |
