510104150

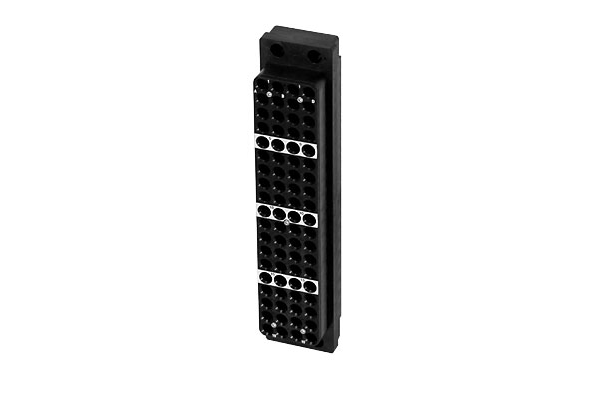

Mini Coax, Module, Receiver, 90 Series, 76 Position

Specifications
Material Black-PPS
Temperature Operating • -55° C to 125° C
Non Operating • -65° C to 225 ° C
UL-94 Flame Class V-0
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 76
Module Slots Needed 2

Mini Coax, Module, Receiver, 90 Series, 76 Position

 Primary mating module 510108132. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610104114

Mini Coax, Contact, Receiver, RG316*
610104140

Mini Coax, Contact, Receiver, two .025" Square Wire Wrap Posts
610104141

Mini Coax, Contact, Receiver, RG178
610104142

Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
610104149

Mini Coax, Contact, Receiver, RG316 Double Shield
610113170

Mini Fiber Optic, Contact, Receiver, Polymer Optic Fiber*
610113172

Mini Fiber Optic, Contact, Receiver, Multimode*
610131108

Mini Pneumatic, Contact, Receiver, Hose Barb for 1/8" [3.2 mm] ID Tubing, Fits Mini Coaxial/ Mini Power modules
610131111

Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 4 mm OD Tubing
610131112

Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 6 mm OD Tubing

Module - 90 Series ITA

Part Number

Description

510108132

Mini Coax, Module, ITA, 90 Series, 76 Position

Module Accessory Kit

Part Number

Description

VPC 510109300

Module Accessory Kit, Quantity 39 0-80 x .250" Socket Head Cap Screws
VPC 510109619

Module Accessory Kit, Quantity 26, 4-40 x .56"  Socket Head Cap Screws

Strain Relief Plate

Part Number

Description

510109298

Strain Relief Plate, Receiver, 90 Series
