510160104

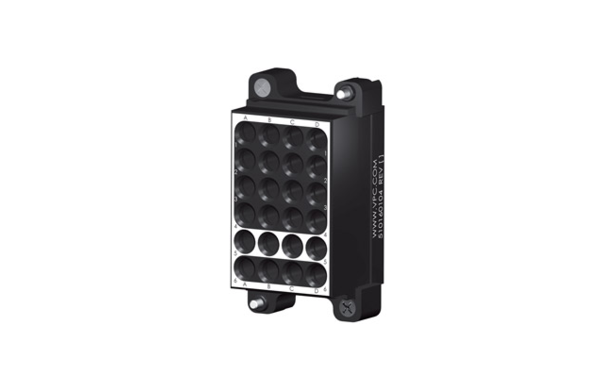

Mini Power/Mini Coax, Module, Receiver, iCon Series, 24 Position

Specifications
Material Black High-Temp Thermoplastic
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-65°C to 220 °C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 24
Module Positions Needed 1

Mini Power/Mini Coax, Module, Receiver, iCon Series, 24 Position

 Primary mating module 510161104. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610104114

Mini Coax, Contact, Receiver, RG316*

N/A
610104140

Mini Coax, Contact, Receiver, two .025" Square Wire Wrap Posts
610104141

Mini Coax, Contact, Receiver, RG178
610104142

Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
610104149

Mini Coax, Contact, Receiver, RG316 Double Shield
610113170

Mini Fiber Optic, Contact, Receiver, Polymer Optic Fiber*

N/A
610113172

Mini Fiber Optic, Contact, Receiver, Multimode*

N/A
610116112

Mini Power, Contact, Receiver, 65 Amp, 8 AWG
610131108

Mini Pneumatic, Contact, Receiver, Hose Barb for 1/8" [3.2 mm] ID Tubing, Fits Mini Coaxial/ Mini Power modules
610131111

Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 4 mm OD Tubing
610131112

Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 6 mm OD Tubing

Module - iCon/i1 ITA

Part Number

Description

510161104

Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position

Receiver

Part Number

Description

310123101

Receiver, iCon, with Protective Cover
310123102

Receiver, iCon EMI , with Protective Cover and Strain Relief
310128101

Receiver, i1, with Protective Cover
310131102

Receiver, iDock Series, D1, 1 Module
