610140103

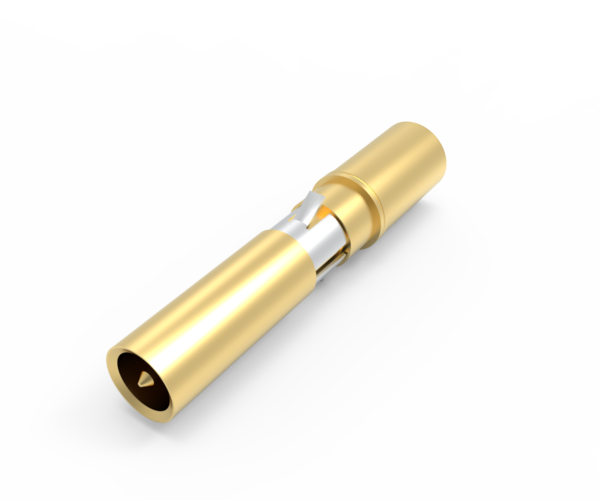

Micro Coaxial Contact, Receiver, RG179

Mechanical Specifications
Durability 10,000 cycles
Contact Material

Center Conductor – BeCu

Shield – Brass

Contact Plating 50µ" Au over 100µ" Ni
Contact Termination Center Conductor - Solder
Shield - Crimp
Electrical Specifications
Characteristic Impedance 75Ω
Frequency Range DC – 2 GHz
VSWR 1.39 @ 2 GHz
Insertion Loss – √f(GHz) x .06 dB
DWV 800 V RMS
Contact Resistance 6 mOhms center/4 mOhms outer
Cable Specifications RG179
Environmental Specifications
Operating Temperature -65°C to +125°C
Vibration MIL-STD 202, Method 204, Test Condition D
Shock MIL-STD 202, Method 213, Test Condition I
Insulation Resistance 2000 MOhms Min.

Micro Coaxial Contact, Receiver, RG179
