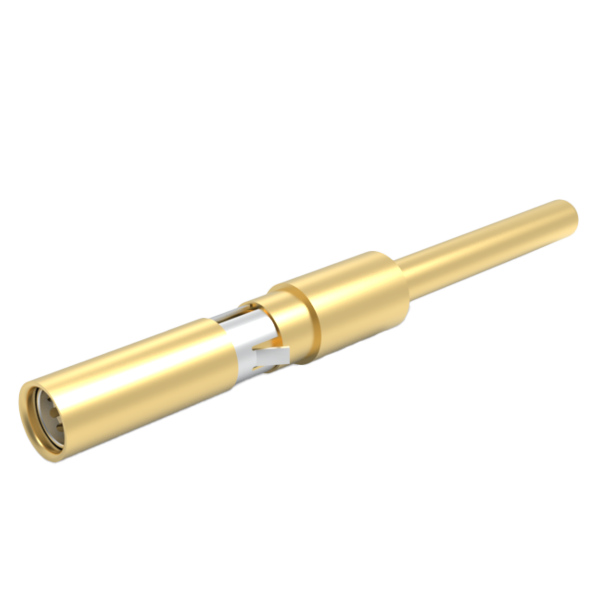

Micro Power, Contact, Receiver, 21 Amp, PCB Mount

Operating Current 21 amps continuous
Contact Resistance 1.5 mOhms max.
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Contact Body Brass
Contact Plating 30µ" Au over 100µ" Ni
Cycle Life 10,000 cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs) 1.23

Micro Power Contact, Receiver, 21 Amp, PCB Mount

Primary mating contact 610143101. (May mate with other ITA contacts, as well.)
