9025 VXI

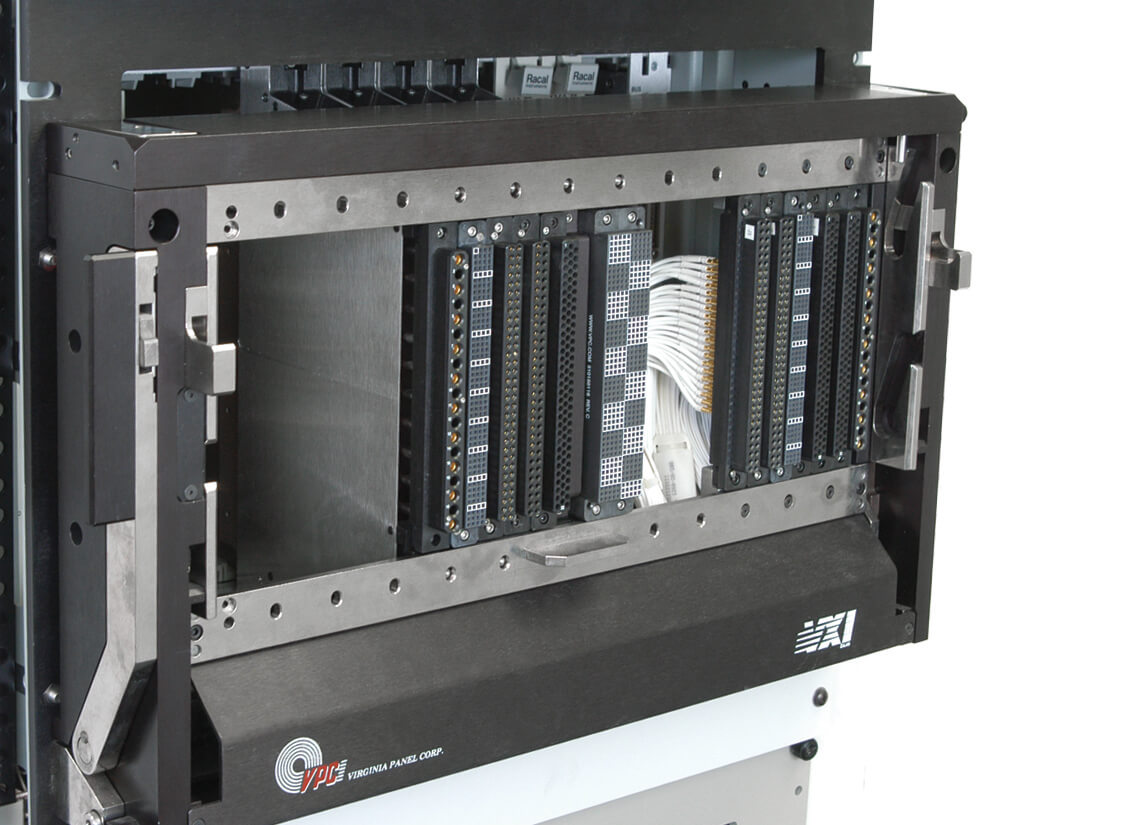

Rack Mounting Applications

  • The high I/O systems are ideal for rack mounting applications
  • Can be used on a Vertical Hinged Mounting Frame to access wiring and instrumentation
  • Time saving with rapid changeover

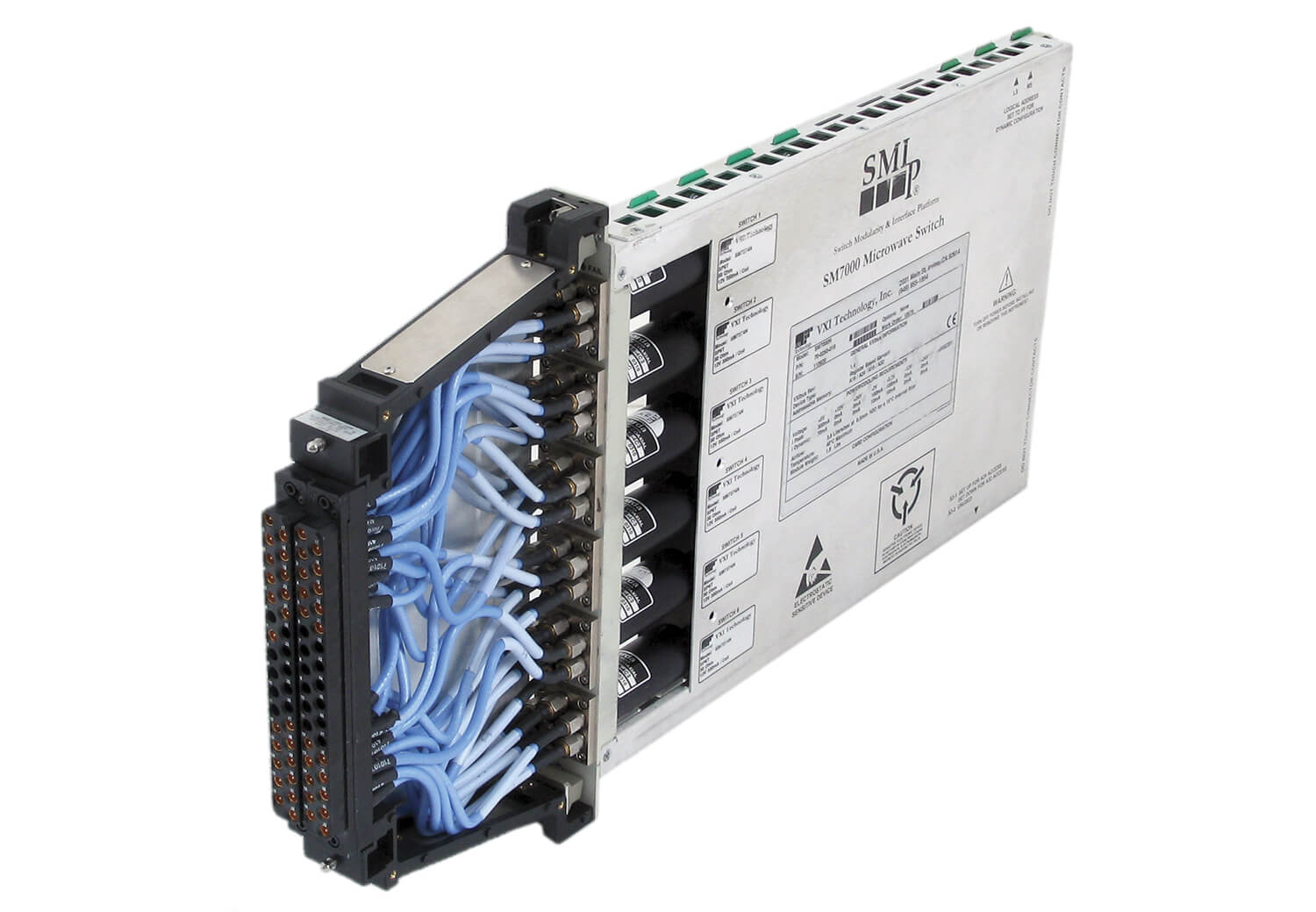

Pre-Wired InterConnect Adapters

  • Pre-wired InterConnect adapters act as a compact funnel for wiring directly to VXI cards
  • Plug the connectors on the back of the funnel to the VXI card and the test system is ready to use
  • Different connector plates are available to cable out of the InterConnect Adapters

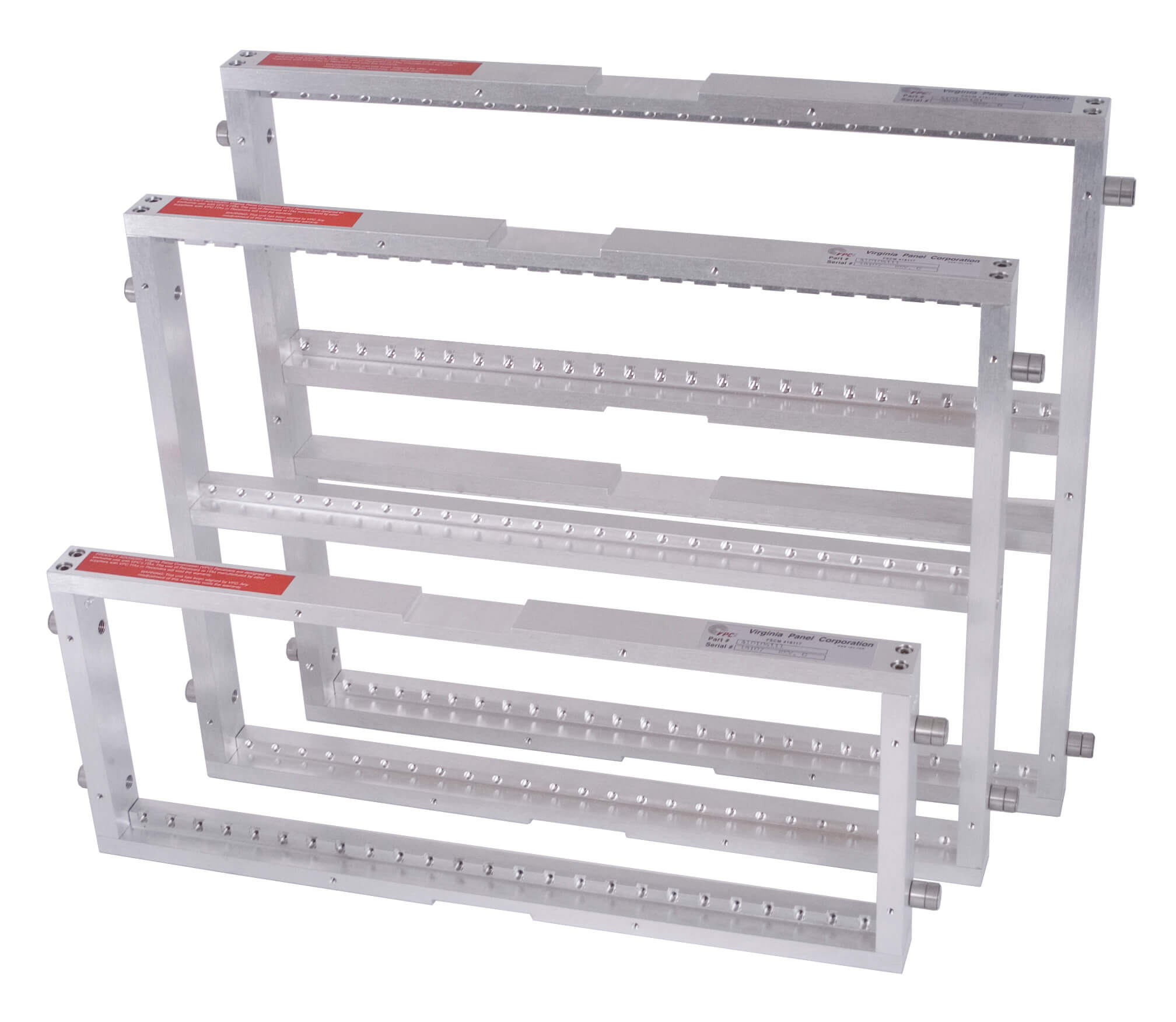

Standard ITAs

  • Buy our ITA’s with our standard enclosures, or attach them to your custom enclosure
  • Guaranteed a precise fit to VPC receivers
  • Have us customize our enclosure to fit your testing needs

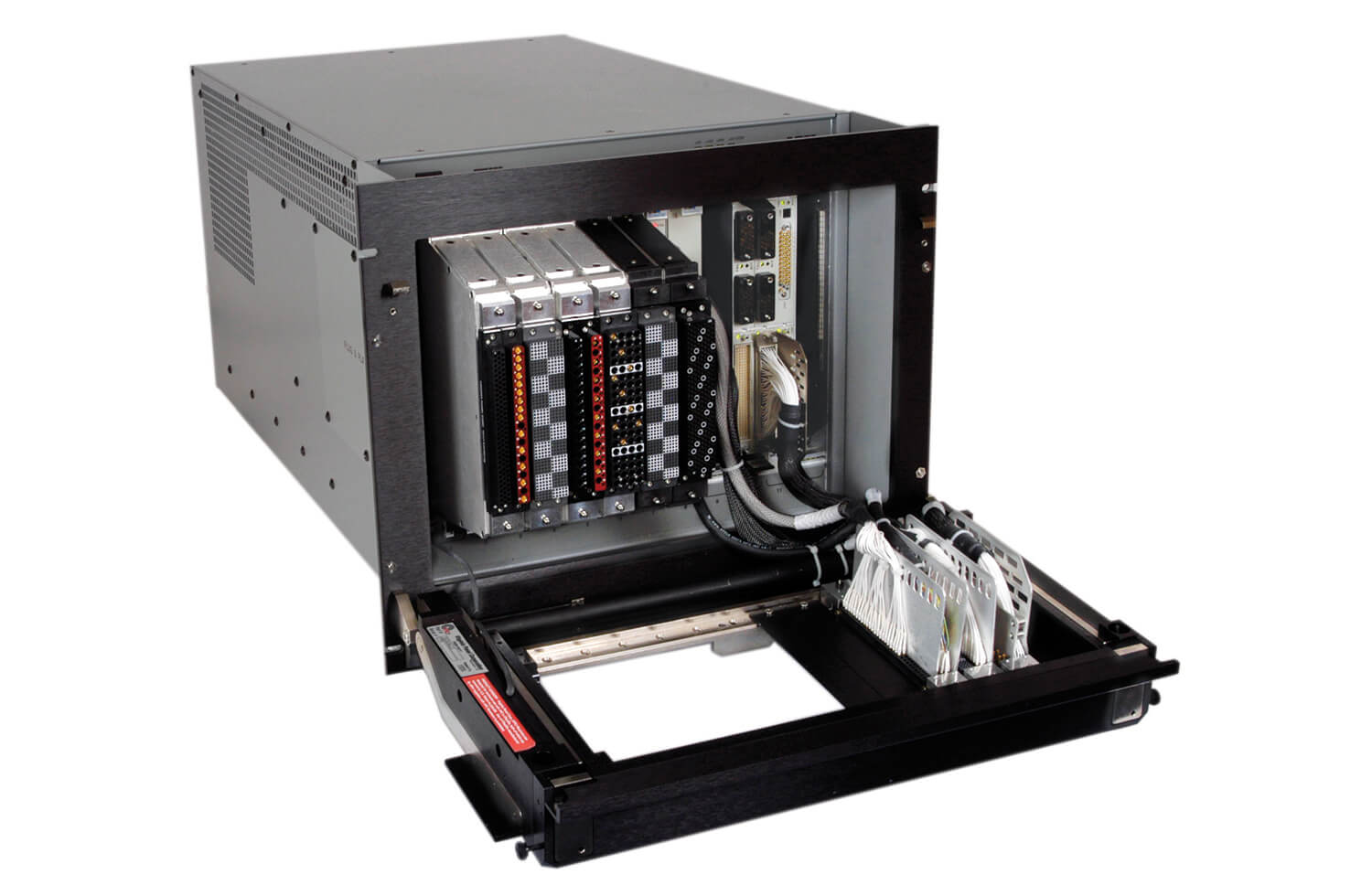

Easy Wiring with Cable Assemblies

  • Combine our VXI Pre-wired InterConnect Adapters with cable assemblies to have the most rapid setup time
  • Cable Assemblies can be created by VPC based on your testing instrumentation needs
  • Standard cables are also available
25 Module VXI Solution

The VXI Receiver is designed for use with our Pre-Wired InterConnect Adapters, but can also accommodate a combination of Pre-Wired InterConnect Adapters and discrete wired modules using retainer blocks. One to four modules attach to the Interconnect Adapter, (a hollow shell with a removable side for discrete or printed wiring), which in turn is attached to the VXI card. This connector “funnel” forms a complete VXI module, which is easily inserted or removed from the VXI mainframe for maximum flexibility in testing applications. The InterConnect Adapter also provides room for driver sensors or personality electronics. External cabling to the card is accomplished by a cable clamp or connector located on the top or bottom of the InterConnect Adapter. The positioning of funnels and use of discrete wiring modules can affect the performance of the product. Please contact factory for technical assistance.
