9025TR

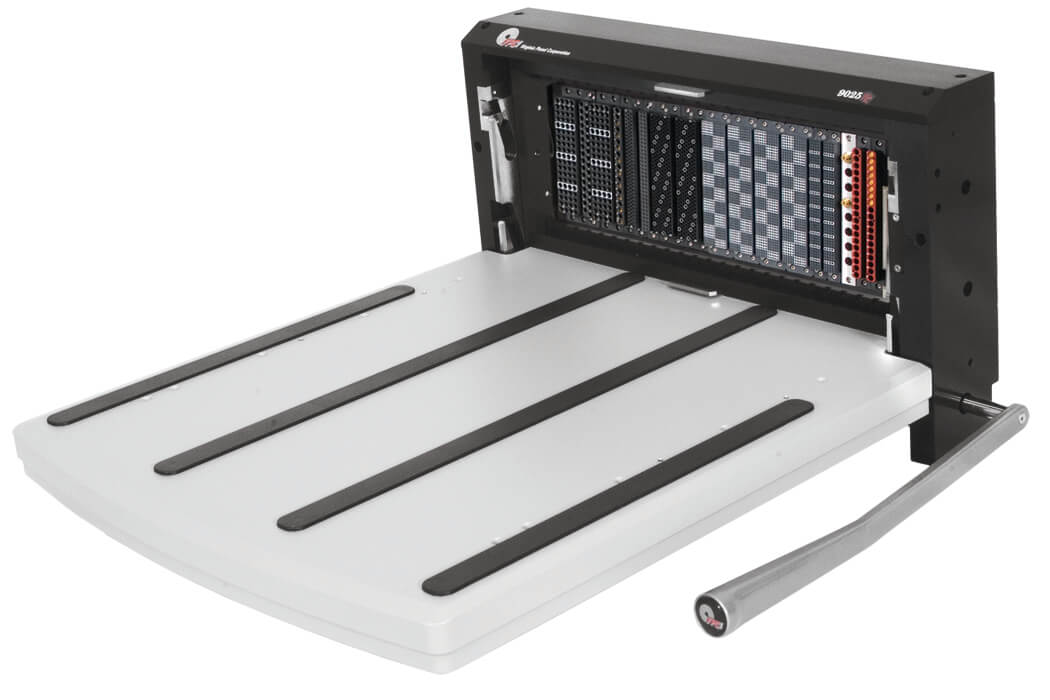

High I/O Platform Solution

  • All the features of the 9025 plus platform support
  • Docking feature that provides an easy way to guide a fixture into position prior to engagement
  • Runners along the platform that provide a smooth-sliding action
  • Captive mounting hardware

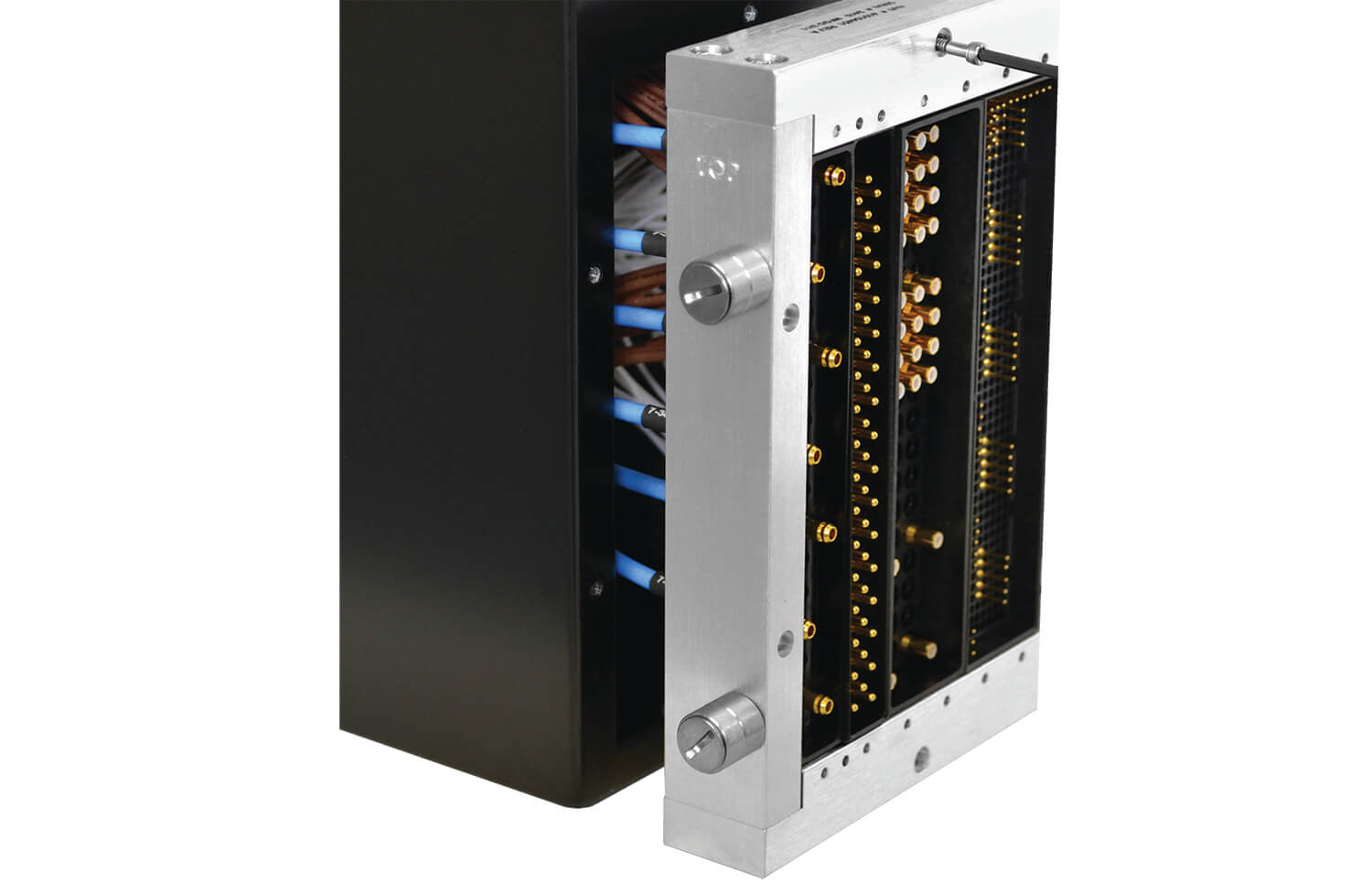

 ITA for Standard or Custom Enclosures

  • Use 9025TR ITAs with VPC's standard enclosures, or with a custom enclosure
  • ITA accepts both front and rear mount enclosures (front mount shown)
  • Let VPC customize an enclosure to fit your testing needs

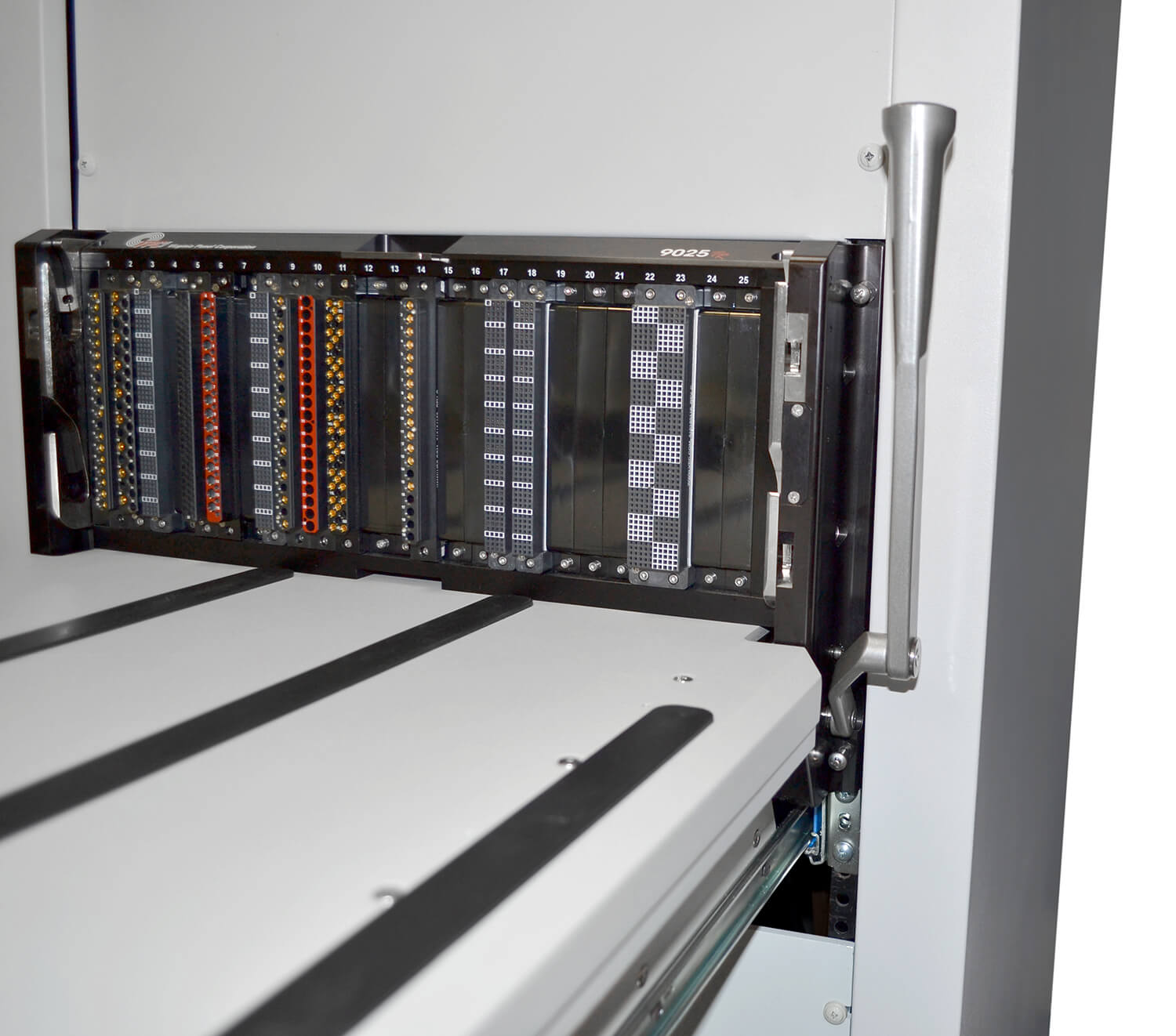

Key Features

  • 20" platform supports ITA when not in use (up to 180 lbs.)
  • Handle offers an offset link to accommodate larger ITA enclosures
  • Handle can be installed on right or left side of receiver
  • Accommodates over 4800 signal contacts
  • Accessories available: slide kit, support legs, retractable keyboard and instrument bracket with strain relief

QuadraTrack™ Engagement

  • Engaging mechanism in the form of a pair of slotted steel slides located in the receiver
  • Distributes uniform pressure to four points on the ITA during engagement and disengagement
  • Precise signal integrity between the Receiver and ITA is maintained by this QuadraTrack™ engagement system

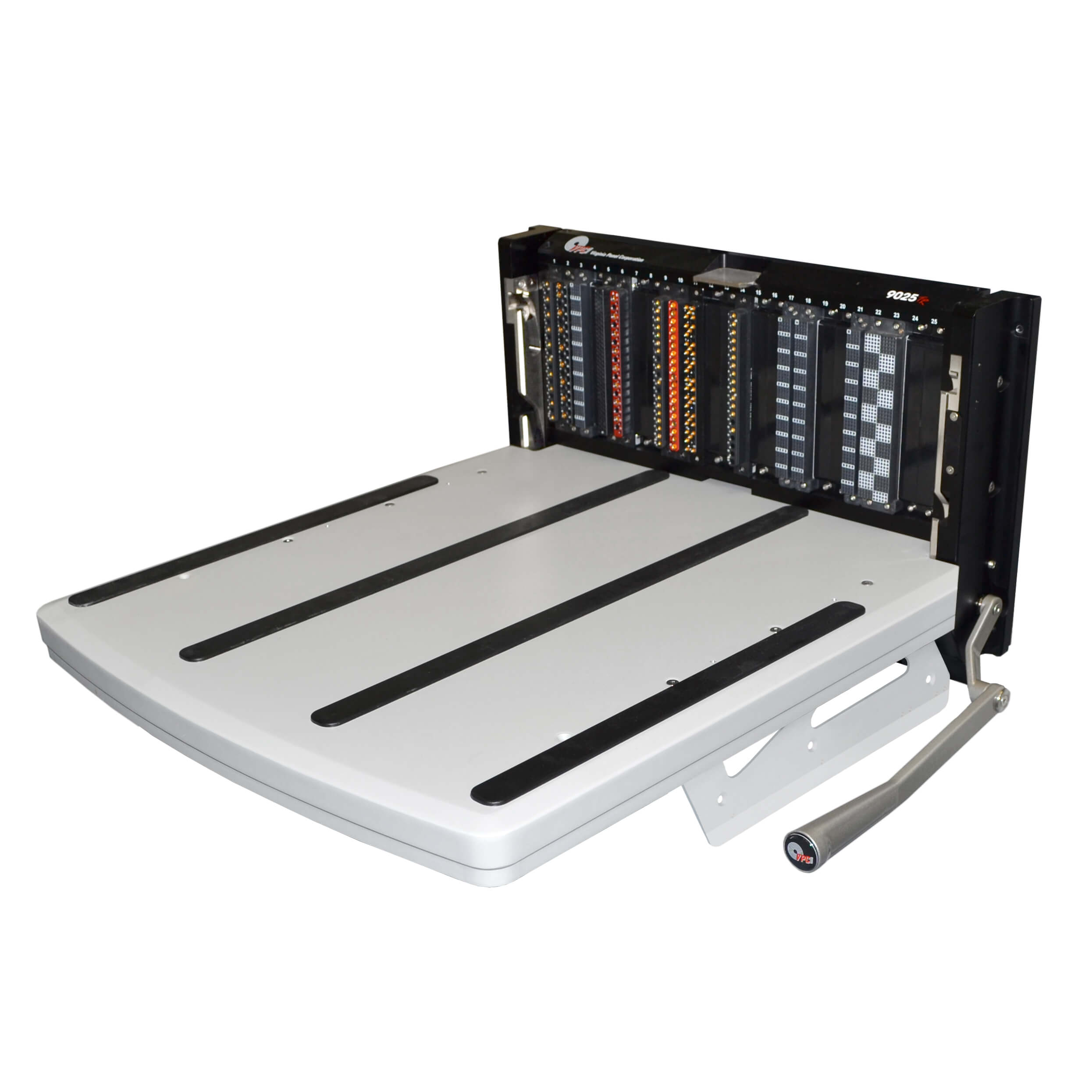

9025TR - 25 Module Solution with Platform

The 9025TR has over twice the I/O as the G12 and is outfitted with the same 20 inch platform to support your enclosure while engaging and disengaging.
