9050 Slide Mount

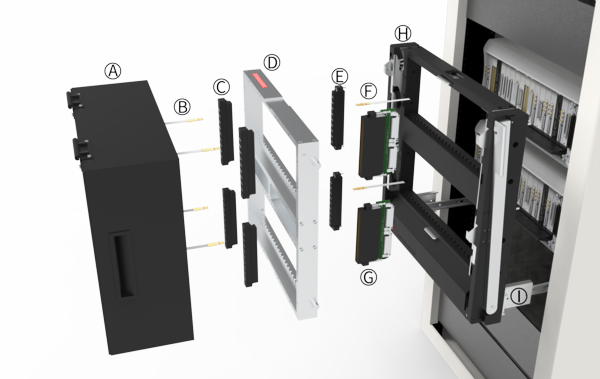

9050 Exploded View

A. ITA Enclosure B. ITA Patchcords C. ITA Modules
D. ITA Frame E. Receiver Modules F. Receiver Patchcords
G. PCB Adapter H. Receiver Frame I. Slide Kit

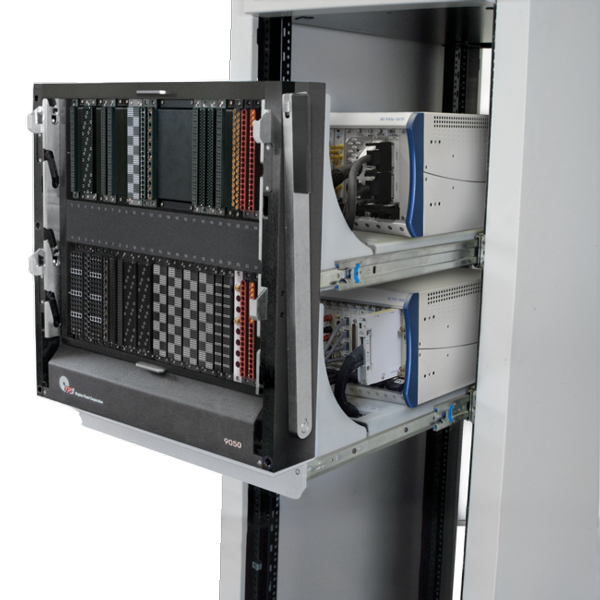

9050 Slide Mount

The 9050 Slide Configuration provides maximum test system versatility. This configuration allows for easy instrument wiring and chassis access which allows for shorter cable lengths and a flush rack mount to save valuable work space.

Ordering has been simplified with packages offered that include the 9050 receiver, receiver mounting plate, flanges and instrument bracket. Slide kits are available in depths designed to fit most common racks. To determine the slide kit needed, measure rack depth between mounting rails.

 Slides are rated to support 180 lbs (81 kg) to accommodate even the largest fixtures.

User Manual

Receiver

  • 310104402
    Receiver, 9050, 50 Module, for Slide Mounting (slide kit required)
    310104483
    Receiver, 9050, 50 Module, for 36" Slide Mounting Kits only (slide kit not included)

ITA

  • 410104538
    ITA, 9050, 50 Module, Double Tier

Protective Cover

  • 310113285
    Protective Cover, 9050, Receiver
    410112582
    Protective Cover, 9050, ITA

Module - 90 Series Receiver

  • 510104109
    Signal, Module, Receiver, TriPaddle, 64 Position, w/ Right Angle Contacts
    510104120
    Mini Coax, Module, Receiver, 90 Series, 19 Position
    510104123
    Mini Power, Module, Receiver, 90 Series, 19 Position
    510104133
    Thermocouple, Module, Receiver, 90 Series, 64 Position
    510104134
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position
    510104135
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position, w/ Right Angle Contacts
    510104136
    Signal, Module, Receiver, TriPaddle, 90 Series, 96 Position
    510104149
    Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
    510104150
    Mini Coax, Module, Receiver, 90 Series, 76 Position
    510104187
    Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position, w/ Right Angle Contacts
    510104206
    Signal/Mini Power, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104224
    Coax, Module, Receiver, 40 GHz, 90 Series, 8 Position
    510104243
    Signal/Mini Coax, Module, Receiver, TriPaddle, 90 Series, 16/16 Position
    510104249
    Coax, Module, Receiver, 75 Ohm, 90 Series, 32 Position
    510104260
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions
    510104266
    Vacuum, Module, Receiver, 90 Series, 2 Port Positions w/ Filter
    510104267
    Micro Power/ Micro Coax, Module, Receiver, 90 Series, 50 Positions
    510104276
    Vacuum-Pneumatic, Module, Receiver, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510104287
    Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
    510104289
    Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
    510104301
    Mini Coax, Module, Receiver, 90 Series, 37 Position
    510104306
    Signal/Micro Coax/Micro Power, Module, Receiver, TriPaddle, 90 Series, 77/8 Position
    510104307
    Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate
    510104319
    Mini Coax, Module, Receiver, 90 Series, 19 Positions, for use with right-angle contact (p/n 610104160)
    510109315
    Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting
    510150115
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
    510150116
    Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
    510150130
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
    510150136
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
    510150137
    Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)
    510150147
    Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610138200 and 610138118)
    510170101
    SIM, Module, Receiver, 90 Series, 272 Pos, 34 Slots

Module - 90 Series ITA

  • 510108101
    Signal, Module, TriPaddle, ITA, 90 Series, 64 Position
    510108111
    Mini Coax, Module, ITA, 90 Series, 19 Position
    510108112
    Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts
    510108115
    Mini Power, Module, ITA, 90 Series, 19 Position
    510108124
    Thermocouple, Module, ITA, 90 Series, 64 Position
    510108125
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts
    510108126
    Signal, Module, ITA, TriPaddle, 90 Series, 96 Position
    510108132
    Mini Coax, Module, ITA, 90 Series, 76 Position
    510108169
    Coax, Module, ITA, 40 GHz, 90 Series, 8 Position
    510108178
    Signal/Mini Power, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108179
    Coax, Module, ITA, 20/26 GHz/ 75 Ohm HD and 75 Ohm, 90 Series, 32 Position
    510108210
    Signal / Mini Coax, Module, ITA, TriPaddle, 90 Series, 16/16 Position
    510108240
    Coax, Module, ITA, 20/26 GHz, 90 Series, 17 position
    510108242
    Vacuum, Module, ITA, 90 Series, 2 Port Positions
    510108245
    Signal/Thermocouple, Module, ITA, TriPaddle , 90 Series, 84/12 Position
    510108251
    Vacuum, Module, ITA, 90 Series, 2 Port Positions, w/ M22.5x1.5 Tap
    510108262
    Micro Power / Micro Coax, Module, ITA, 90 Series, 50 Position
    510108263
    Micro Power/ Micro Coax, Module, ITA, 90 Series, 120 Positions
    510108264
    Vacuum-Pneumatic, Module, ITA, 90 Series, 1 Pos Vacuum, 2 Pos 3/8" ID Pneumatic
    510108276
    Mini Coax, Module, ITA, 90 Series, 37 Position
    510108278
    Signal/Micro Coax, Module, ITA, TriPaddle, 90 Series, 77/8 Position
    510151105
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
    510151106
    Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
    510151107
    Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610138115) *Mounting Screws NOT Included*
    510151124
    Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610138122)
    510171101
    SIM, Module, ITA, 90 Series, 272 Pos, 34 Slots

Slide Kit

  • 310113409
    20" Slide Kit, Fits 20"-22" Deep Racks, Supports 180 lbs.
    310113410
    24" Slide Kit, Fits 24"-26" Deep Racks, Supports 180 lbs.
    310113411
    30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
    310113451
    28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
    310113500
    36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.

Strain Relief Plate

  • 510109116
    Strain Relief Plate, Receiver, 90 Series
    510109296
    Strain Relief Plate, ITA, 90 Series
    510109298
    Strain Relief Plate, Receiver, 90 Series

PXI Chassis Mount Kit

  • 310113605
    Dual Chassis Mounting Kit, for mounting 2 PXI chassis together

9025 Enclosure

  • 410112336
    Enclosure, 9025 Adapter for 9050, Hinged Cover, 4" Deep

9050/ 9050 VXI Enclosure

  • 410112336
    Enclosure, 9025 Adapter for 9050, Hinged Cover, 4" Deep
    410112463
    Enclosure, 9050, Hinged Cover,  6" Depth

SIM Module Right Angle Kit

  • 510170102
    SIM, Module, Receiver, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
    510171102
    SIM, Module, ITA, 90 Series, Fully Loaded with pairs of VTAC Standard Pass-Thru and Right Angle Inserts (610151106)
