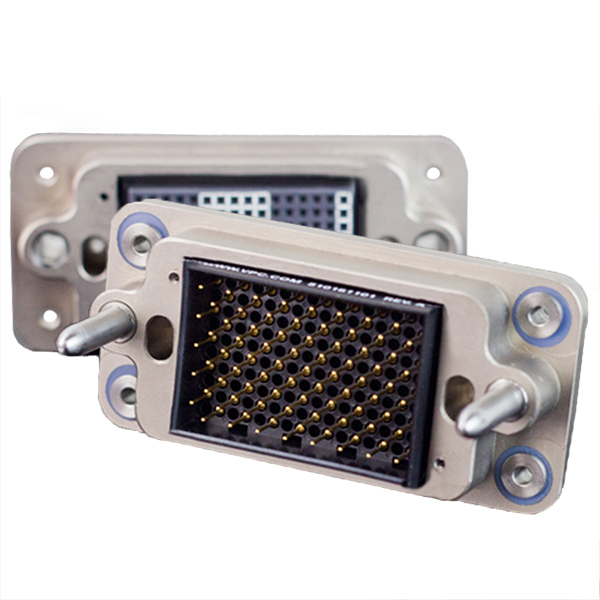

D1

User Manual

iDock Series connectors are a mass interconnect for use with automatic machine handlers. As VPC's most compact design, the D1 is compatible with a variety of hybrid I/O modules that include: power, coax, signal, vacuum, pneumatic, and high speed digital. Despite its compact size, the D1 can engage up to 160 signal contacts simultaneously. The iDock Series connectors are compatible with VPC's existing line of modules, contacts, and tools.

Accessory - iCon

  • Strain Relief Plate, iCon, Receiver

ITA

  • ITA, D1, 1 Module, iCon Module

Module - iCon/i1 ITA

  • Signal Module, ITA, QuadraPaddle, iCon, 160 Position
    QuadraPaddle Signal / Mini Power and Mini Coaxial Module, ITA, iCon, 100/8 Position
    TriPaddle Signal / Mini Power and Mini Coaxial Module, ITA, iCon, 64/8 Position
    Mini Power or Mini Coaxial Module, ITA, iCon, 24 Position
    Micro Power and Micro Coaxial Module, ITA, iCon, 40 Position
    QuadraPaddle Signal / Micro Power and Micro Coaxial Module, ITA, iCon, 100/15 Position
    TriPaddle Signal, Module, ITA, iCon, 96 Position
    TriPaddle Signal / Twinaxial Module, ITA, iCon, 40/4 Position
    Thermocouple Module, ITA, iCon, 96 Position
    TriPaddle Signal / Micro Power and Micro Coaxial Module, ITA, iCon, 24/30 Position
    Coaxial Module, ITA, iCon, 20/26 GHz and 75 Ohm HD, 18 Position
    TriPaddle Signal / 20/26 GHz and 75 Ohm HD Coaxial Module, ITA, iCon, 64/8 Position
    VTAC HSD Module, ITA, iCon, 14 Position

Module - iCon/i1 Receiver

  • Signal Module, Receiver, QuadraPaddle, iCon, 160 Position, for Crimp Contacts
    QuadraPaddle Signal / Mini Power and Mini Coaxial Module, Receiver, iCon, 100/8 Position
    TriPaddle Signal / Mini Power and Mini Coaxial Module, Receiver, iCon, 64/8 Position
    Mini Power or Mini Coaxial Module, Receiver, iCon, 24 Position
    Signal Module, Receiver, QuadraPaddle, iCon, 160 Position, Fully Loaded with Twin Female Contacts (610 138 200)
    Micro Power and Micro Coaxial Module, Receiver, iCon, 40 Position
    QuadraPaddle Signal / Micro Power and Micro Coaxial Module, Receiver, iCon, 100/15 Position, for Crimp Contacts
    TriPaddle, Signal Module, Receiver, iCon, 96 Position
    TriPaddle Signal / Twinaxial Module, Receiver, iCon, 40/4 Position
    Thermocouple Module, Receiver, iCon, 96 Position
    TriPaddle Signal / Micro Power and Micro Coaxial Module, Receiver, iCon, 24/30 Position
    QuadraPaddle Signal / Micro Power and Micro Coaxial Module, Receiver, iCon, 100/15 Position, Fully Loaded with Twin Female Contacts (610 138 200)
    QuadraPaddle Signal/Micro Power and Micro Coaxial Module, Receiver, iCon, 100/15 Position, Fully Loaded with Twin Female Contacts and Round Posts (610 138 200 and 610 138 117)
    Coaxial Module, Receiver, iCon, 20/26 GHz and 75 Ohm HD, 18 Position
    TriPaddle Signal / 20/26 GHz and 75 Ohm HD Coaxial Module, Receiver, iCon, 64/8 Position
    VTAC HSD Module, Receiver, iCon, 14 Position

PCB Adapter

  • PCB Adapter, Receiver, SIM, VTAC HSD, 5 Positions, to (1) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, Receiver, SIM, VTAC HSD, 6 Positions, to (1) Cat 6
    PCB Adapter, Receiver, SIM, VTAC HSD, 6 Positions, to (1) HDMI
    PCB Adapter, Receiver, SIM, VTAC HSD, 6 Positions, to (1) DisplayPort
    PCB Adapter, ITA, SIM, VTAC HSD, 5 Positions, to (1) USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1)
    PCB Adapter, ITA, SIM, VTAC HSD, 6 Positions, to (1) Cat 6
    PCB Adapter, ITA, SIM, VTAC HSD, 6 Positions, to (1) HDMI
    PCB Adapter, ITA, SIM, VTAC HSD, 34 Positions, to (2)  USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) and (4) Cat 6
    PCB Adapter, ITA, SIM, VTAC HSD, 6 Positions, to (1) DisplayPort

Receiver

  • Receiver, D1, 1 Module, iCon Module
