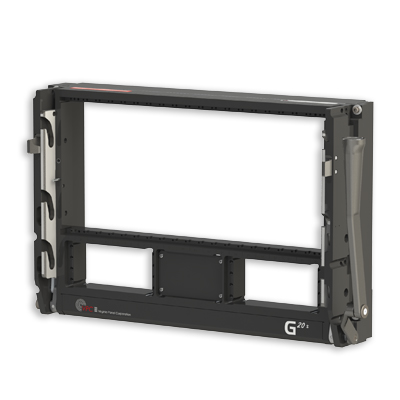

Specifications
Frame Material	Anodized Aluminum
Slide Material	Nickel Plated Steel
Linkage, Handle	Stainless Steel
Available Module Slots	20 Vertical Module positions and 8 Horizontal Module Positions
Cycle Life	20,000 Cycles
Temperature	-55ºC to 85ºC
Max. Weight Support	80 lbs. @ 12” [36 kg @ 30.5 cm]
Max. Mating Force	1257 lbs. [570.2 kg]

	Part Number	Description
	310113410	24" Slide Kit, Fits 24"-26" Deep Racks, Supports 180 lbs.
	310113411	30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
	310113451	28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
	310113500	36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.
