510151127

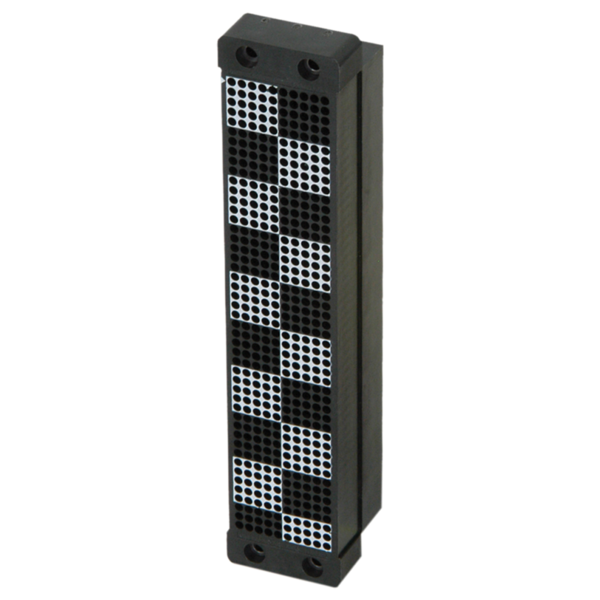

Signal Module, ITA, QuadraPaddle, 480 Position, Fully Loaded for Wire Wrap with Anti-Rotation (610 138 122)

VPC
Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 480
Module Slots Needed 2

Signal Module, ITA, QuadraPaddle, 480 Position, Fully Loaded for Wire Wrap with Anti-Rotation (610 138 122)

NOTE: Part # 510151127 Rev B and higher utilize captive screws that cannot be replaced with screws from currently VPC- offered screw kits.

QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. Allowing flexible configuration options with standard commercial connectors, QuadraPaddle modules are designed to fit any VPC pin and socket-based Mass InterConnect system. Available in 192 and 480 contact positions, QuadraPaddle modules accept standard .100” (2.54mm) pitch headers, breadboards, and connectors for direct PCB, ribbon cable, and other connections as well as discrete wiring.
