510150135

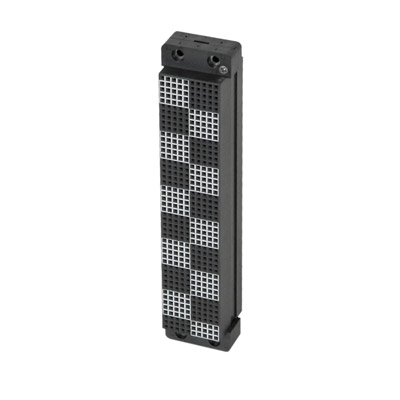

Signal, Module, Receiver, QuadraPaddle, 480 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 480
Module Slots Needed 2

Signal, Module, Receiver, QuadraPaddle, 480 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610138117

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Round Post (Adapter Pin)
610138200

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

Module - 90 Series ITA

Part Number

Description

510151106

Signal, Module, ITA, QuadraPaddle, 90 Series, 480 Position, Unloaded
510151108

Signal Module, ITA, QuadraPaddle, 480 Position, Fully Loaded with Round Posts (610 138 115)
VPC 510151127

Signal Module, ITA, QuadraPaddle, 480 Position, Fully Loaded for Wire Wrap with Anti-Rotation (610 138 122)

Module - 90 Series Receiver

Part Number

Description

510150116

Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded
510150131

Signal, Module, Receiver, QuadraPaddle, 480 Position, Fully Loaded with Twin Female Contacts (610138200)
510150147

Signal Module, Receiver, QuadraPaddle, 90 Series, 480 Position, Fully Loaded with Twin Female Contacts and Square Posts for Wire Wrap (610138200 and 610138118)

Module Accessory Kit

Part Number

Description

VPC 510109359

Module Accessory Kit, 26 4-40x .750" Socket Head Cap Screws

Strain Relief Plate

Part Number

Description

510109298

Strain Relief Plate, Receiver, 90 Series
