510150116

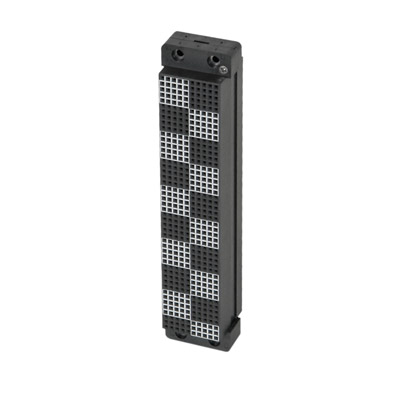

Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 480
Module Slots Needed 2

Signal, Module, Receiver, QuadraPaddle, 480 Position, Unloaded

QuadraPaddle modules are molded on .1” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. Allowing flexible configuration options with standard commercial connectors, QuadraPaddle modules are designed to fit any VPC pin and socket-based mass interconnect system. Available in 192 and 480 contact positions.
