i1
i1
One Module, Diverse Capabilities
- The i1 is VPC's versatile one-module, many configurations handheld connector, the one-module hybrid test connector is designed with the flexibility to be a dedicated primary or secondary solution for a wide range of testing needs
- Engineered to minimum 10,000 mating cycles guaranteed

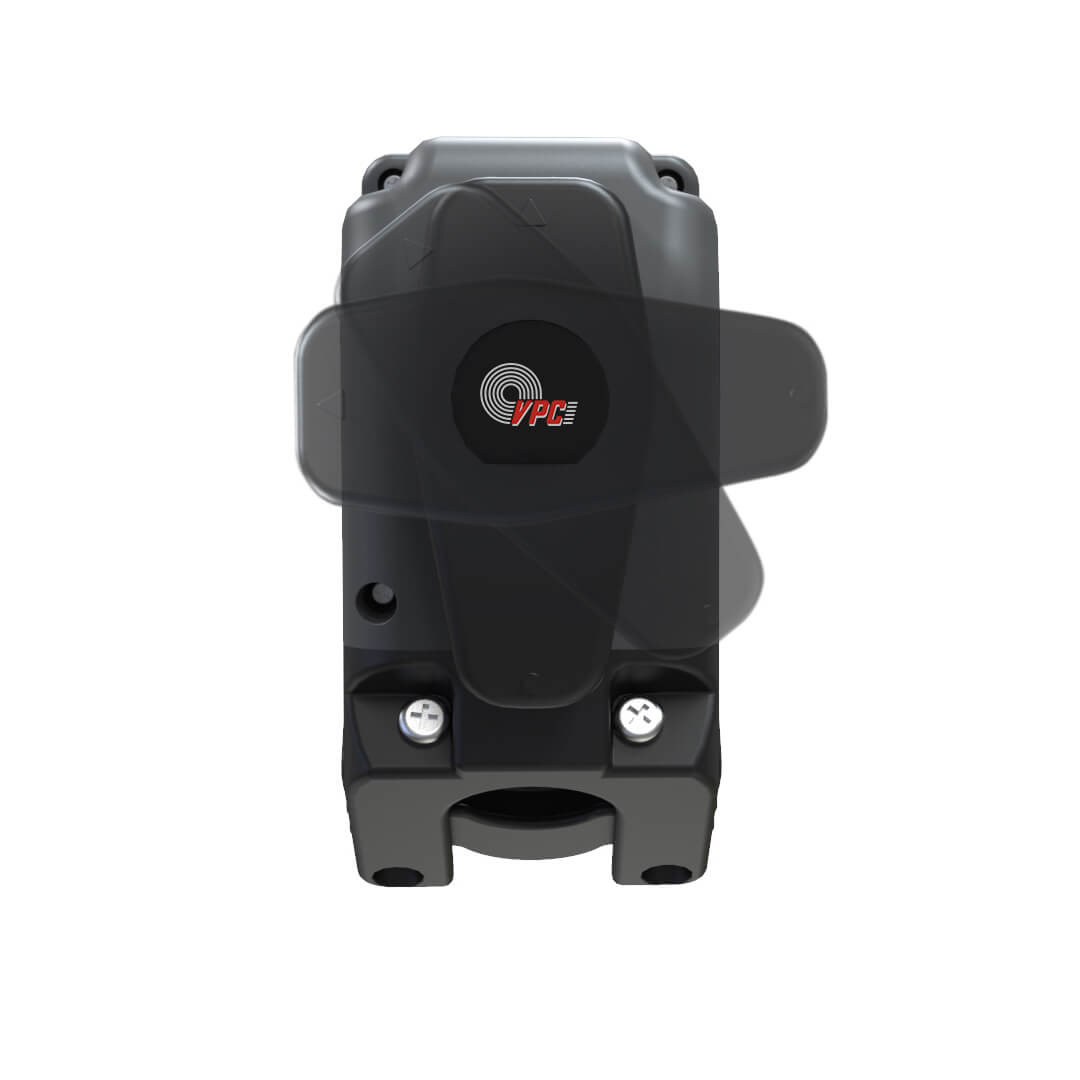

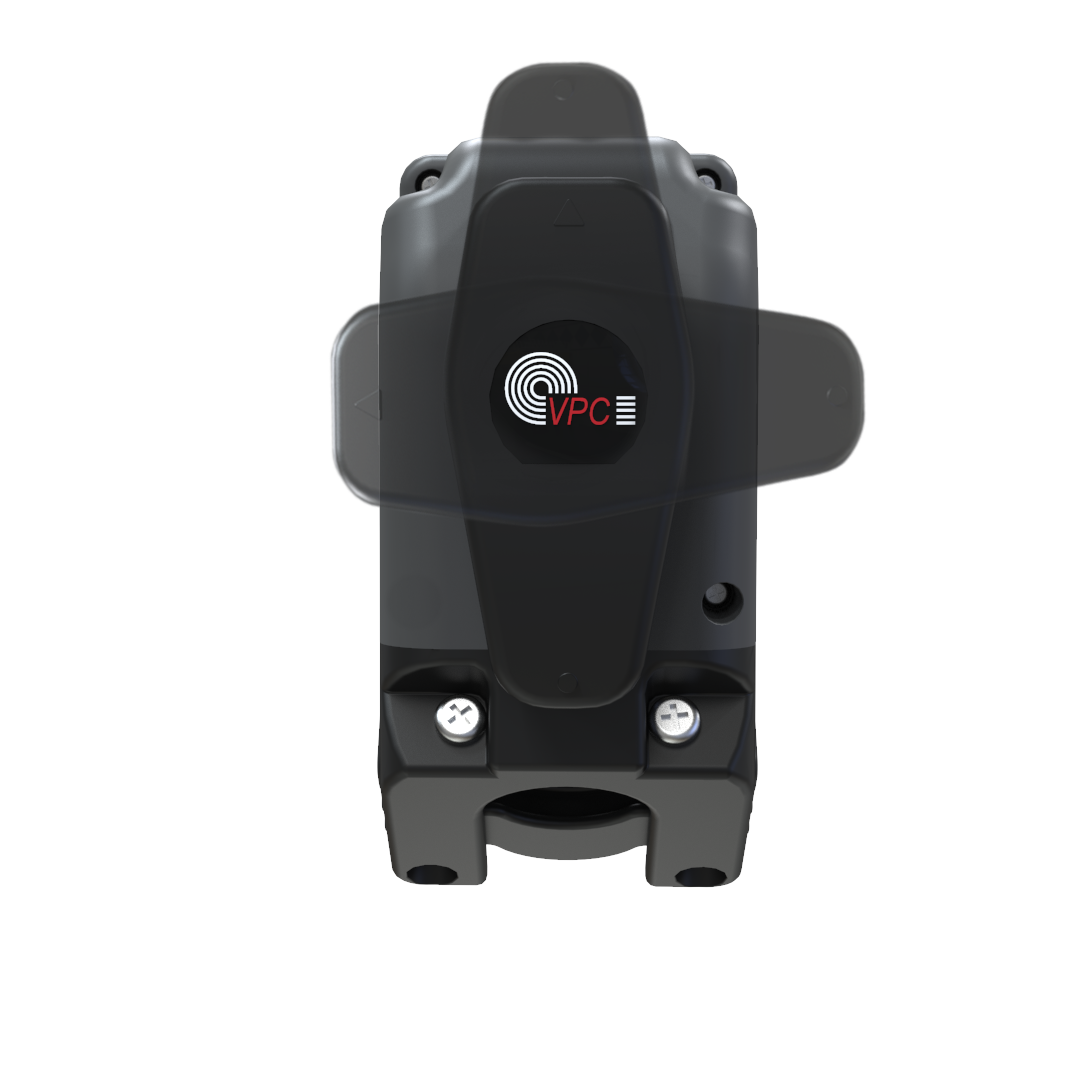

- 180º Half-turn effortless engagement mechanism
Precise, Reliable Engagement
- Engagement mechanism integrates spring locking tabs that fasten over the latching post for secure engagement
- Polarizing pins and optional keying pins ensure proper alignment
- Removable U-shaped cable clamp, backshell, and engaging mechanism for wire access and easy reconfiguration

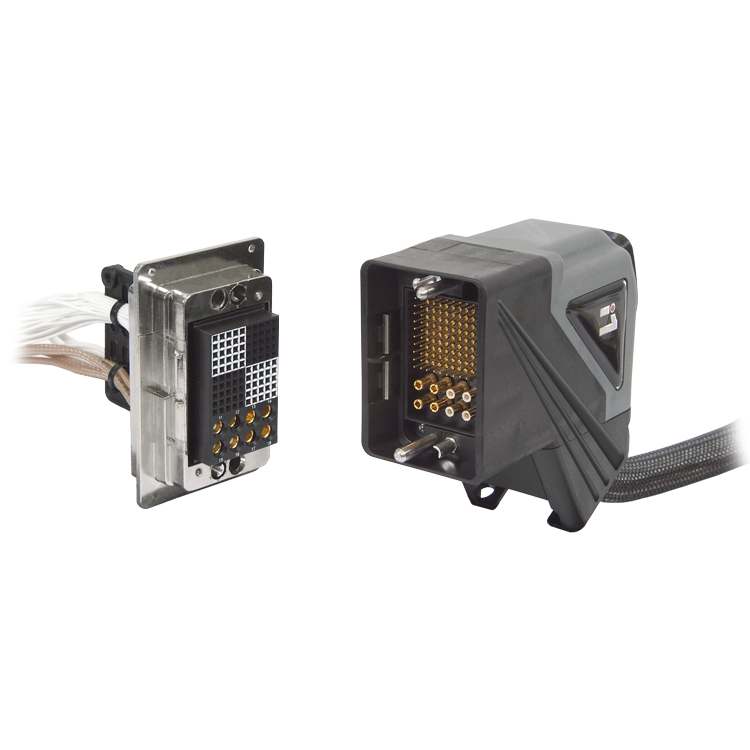

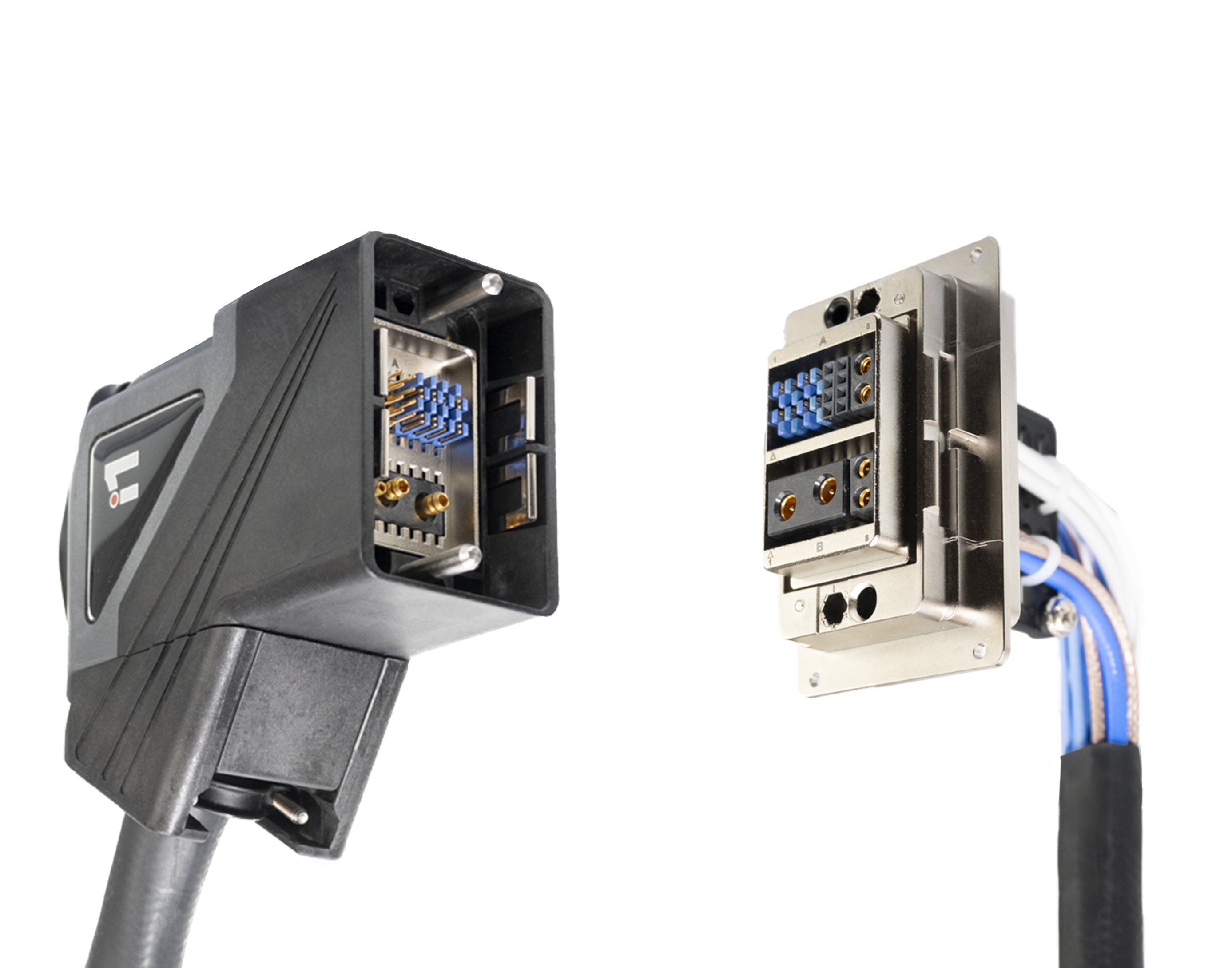

Hybrid Assembly Flexibility
- Range of transmission types: Signal, coax, power, high speed, thermocouple, fiber optic, and pneumatic
- Offers up to 160 QuadraPaddle signal contact positions

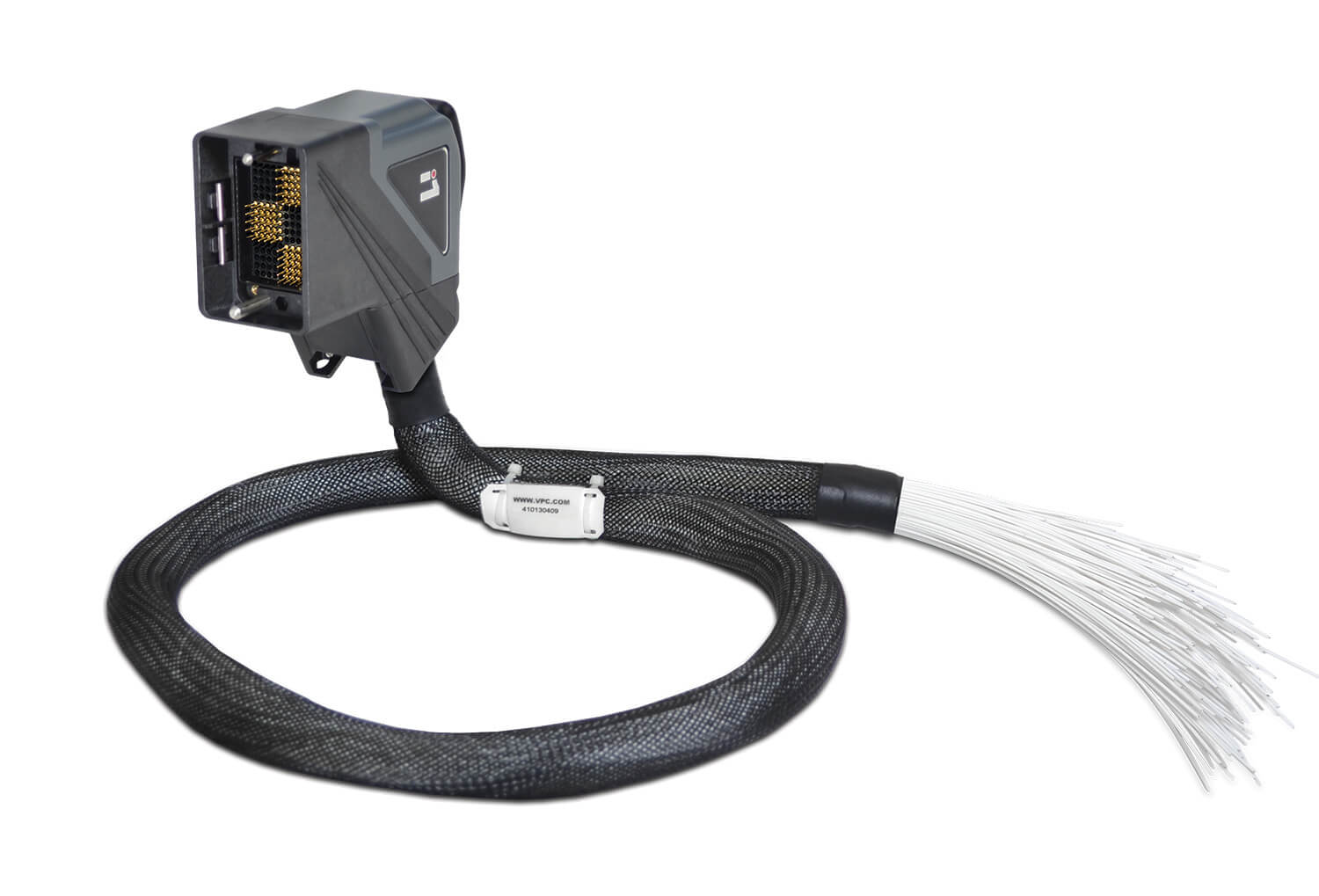

- Available as custom or standard cable assembly, pin-your-own flying leads, or acquire components for reconfiguration
