i1 Precise, Reliable Engagement

  • Simple half-turn handle
  • Polarizing pins and optional keying pins ensure proper alignment
  • Spring locking tabs ensure even locking and engagement
  • Optional EMI-shielding and earth-ground terminals protect signals and users

i1

i1 PCB Mountable

i1 Flying Leads

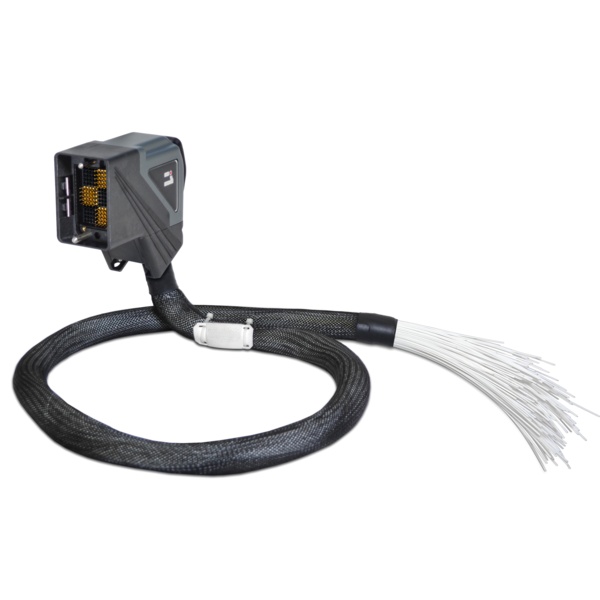

  • Flying leads ITA cable assemblies enable pin-your-own configuration flexibility
  • Offer up to 160 signal points
  • Hybrid assembly allows combination of signal, power, coax, fiber optic, and pneumatic
  • Accepts all iCon modules offering a variety of I/o options for High Power, HSD, and Hybrid
  • Removable backshell and engaging mechanism enable easy access to wiring
  • Small footprint allows vertical and horizontal stackability
  • 30º U-shaped cable clamp for easier vertical stacking
  • Rugged engagement mechanism engineered for 10,000 cycles

User Manual

Video

Receiver

  • 310128101
    Receiver, i1, with Protective Cover

ITA

  • 410128101
    ITA, i1, with Protective Cover
    410128102
    ITA, i1, EMI , with Protective Cover
    410128106
    ITA, i1 XL, 1 Module,  XL Cable Exit

Protective Cover

  • 310113524
    Replacement Protective Cover, i1, Receiver
    310113552
    Protective Cover Accessory, Beaded Chain Kit
    410112864
    Replacement Protective Cover, i1, ITA

Module - iCon/i1 Receiver

  • 510160101
    Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
    510160102
    Signal / Mini Power/ Mini Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/8 Position
    510160103
    Signal/ Mini Power/Mini Coax, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160104
    Mini Power/Mini Coax, Module, Receiver, iCon Series, 24 Position
    510160105
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts
    510160106
    Micro Power/ Micro Coax, Module, Receiver, iCon Series, 40 Positions
    510160107
    Signal/ Micro Power/Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Positions,  for crimp contacts
    510160108
    Signal, Module, Receiver, TriPaddle, iCon Series, 96 Position
    510160109
    Signal / Twinax, Module, Receiver, TriPaddle, iCon Series,  40/4 Position
    510160110
    Thermocouple, Module, Receiver, iCon Series, 96 Position
    510160111
    Signal / Micro Power/ Micro Coax, Module, Receiver, TriPaddle, iCon Series, 24/30 Position
    510160112
    Signal / Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position,  loaded w/twin female contacts
    510160113
    Signal/Micro Power/ Micro Coax, Module, Receiver, QuadraPaddle, iCon Series, 100/15 Position, loaded w/ twin female contacts & round posts
    510160114
    Coax/20-26 GHz/ 75 Ohm HD, Module, Receiver, iCon Series, 18 Position
    510160115
    Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, TriPaddle, iCon Series, 64/8 Position
    510160122
    Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ Twin Female Contacts and Round Posts
    510160124
    Signal / High Power, Module, Receiver, TriPaddle, iCon Series, 4/4 Position
    510160129
    Micro Coax, Module, Receiver, iCon, 40 Pos, Fully Loaded
    510160130
    VTAC, Module, Receiver, iCon Series, 128 Pos, 16 Slot

Module - iCon/i1 ITA

  • 510161101
    Signal, Module, ITA,  QuadraPaddle, iCon Series, 160 Position
    510161102
    Signal / Mini Power/ Mini Coax, Module, ITA, QuadraPaddle, iCon Series, 100/8 Position
    510161103
    Signal / Mini Power/ Mini Coax, Module, ITA, TriPaddle, iCon Series, 64/8 Position
    510161104
    Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
    510161106
    Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position
    510161107
    Signal / Micro Power/ Micro Coax, Module, ITA, QuadraPaddle, iCon Series, 100/15 Position
    510161108
    Signal, Module, ITA, TriPaddle, iCon Series, 96 Position
    510161109
    Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position
    510161110
    Thermocouple, Module, ITA, iCon Series, 96 Position
    510161111
    Signal/ Micro Power/ Micro Coax, Module, ITA, TriPaddle, iCon Series,  24/30 Position
    510161114
    20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon Series, 18 Position
    510161115
    Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position
    510161124
    Signal / High Power, Module, ITA, TriPaddle, iCon Series, 4/4 Position
    510161130
    VTAC, Module, ITA, iCon Series, 128 Pos, 16 Slot

Mounting Panel

  • 310113517
    Mounting Panel, i1, 2U, 8 Positions, Rack Mount
    310113547
    Mounting Panel, i1, 6U, 4 Positions, Slide Mounting (slide kit required)

Cable Assembly- ITA

  • 410128461
    Cable Assembly, ITA, 36", i1, QuadraPaddle, Flying Leads
    410128539
    Cable Assembly, ITA, 72", i1 loaded w/ QuadraPaddle, 72", 24 AWG PVC, Double Ended
    410128613
    Cable Assembly, ITA, 72", i1 Hybrid 100/8, QuadraPaddle, Mini Power and Mini Coax, Flying Leads
    410128667
    Cable Assembly, ITA, 72", i1, QuadraPaddle,  Flying Leads

Keying Pin Kit

  • 310113461
    Keying Pin Kit, iSeries, Receiver and ITA

Strain Relief Plate

  • 310113531
    Strain Relief Plate, Receiver/ITA, i1/D1
    310113582
    Strain Relief Stand-off Kit, iCon, Receiver

Accessory

  • 310113546
    Cover Plate, i1, for Mounting Panel Cutouts, Painted Gray

Backshell

  • 310113727
    Backshell, i1, Receiver, with Large Cable Clamp

Module - Blank

  • 510160100
    Blank, Module,  Receiver/ITA, iCon and i1
