410123101
ITA, iCon, with Protective Cover
| Specifications | |
|---|---|
| Weight | .65 lbs [.29 Kg] without protective cover |
| Frame Material | Nickel Plated Aluminum Alloy |
| Hardware Material | Stainless Steel Alloy |
| Drive Unit Material | Bronze and Stainless Steel |
| Plastic Components and Protective Cover Material | Black Thermoplastic |
| Cable Clamp Material | Powder Coated Aluminum |
| Max. Cable Bundle Diameter | 1.21" |
| Available Module Slots | 2 Positions |
| Cycle Life |
10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 125° C |

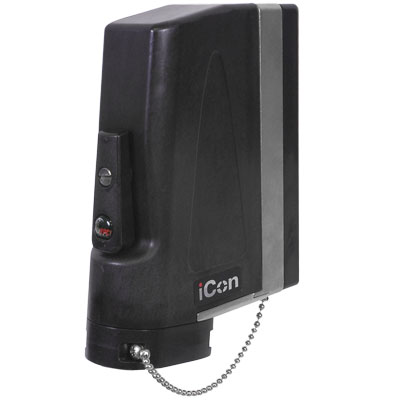

ITA, iCon, with Protective Cover
The iCon ITAs small width and inboard handle allow for easy side-to-side stackability. The u-shaped cable clamp allows modules to be pre-wired before assembly and offers a maximum cable bundle diameter of 1.21". The slide-off cover allows easy access to wiring for maintenance and probing.
Cable bundle too large? Choose the iCon XL! XL-Sized backshell, bend radius, & cable exit to better accommodate larger cables such as high-power or high-speed cables.
