510161109

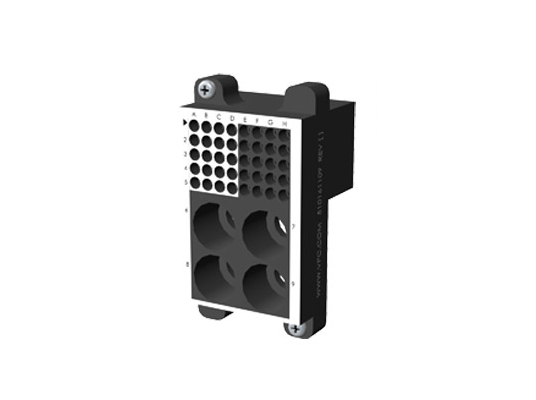

Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position

Specifications
Material FR4
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
UL-94 Flame Class V-0
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 40/4
Module Positions Needed 1

Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position

Primary mating module 510160109.

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610110108

Signal, Contact, ITA, TriPaddle, 7 Amp, 20-24 AWG
610110129

Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
610110169

Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG
610113145

Twinax, Contact, ITA, 50 Ohms

ITA

Part Number

Description

410123101

ITA, iCon, with Protective Cover
410123102

ITA, iCon, EMI-Shielded, with Threaded Coupling Adapter and Protective Cover
410123232

ITA, iCon, EMI, XL Backshell (XL Bend Radius and Cable Exit)
410128101

ITA, i1, with Protective Cover
410128102

ITA, i1, EMI , with Protective Cover
410128106

ITA, i1 XL, 1 Module,  XL Cable Exit

Module - iCon/i1 Receiver

Part Number

Description

510160109

Signal / Twinax, Module, Receiver, TriPaddle, iCon Series,  40/4 Position

Receiver

Part Number

Description

310123103

Receiver, iCon, Reverse Module Configuration for iCon ITA Modules, with Protective Cover
