410123232
ITA, iCon, EMI, XL Backshell (XL Bend Radius and Cable Exit)
| Specifications | |
|---|---|
| Weight | 1.0 lb [.45 Kg] |
| Frame Material | Nickel Plated Aluminum Alloy |
| Hardware Material | Stainless Steel Alloy |
| Drive Unit Material | Bronze and Stainless Steel |
| Plastic Components and Protective Cover Material | Black Thermoplastic |
| Cable Clamp Material | Powder Coated Aluminum |
| EMI Shielded | Yes |
| Max. Cable Bundle Diameter | 1.95" |
| Available Module Slots | 2 Positions |
| Cycle Life |
10,000 Cycles |
| Temperature | -55° C to 125° C |

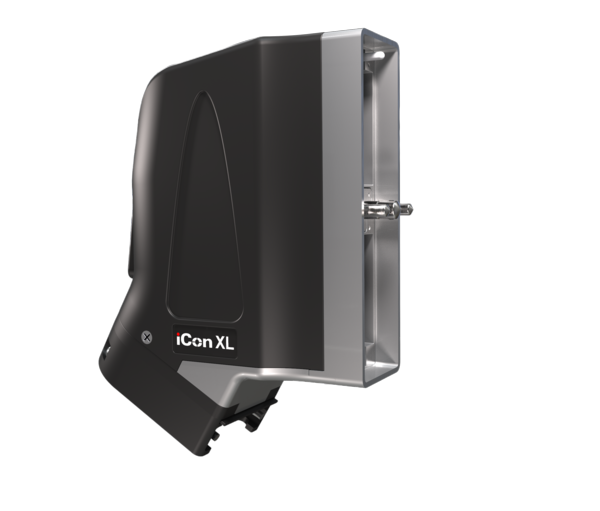

ITA, iCon, EMI, XL Backshell (XL Bend Radius and Cable Exit)

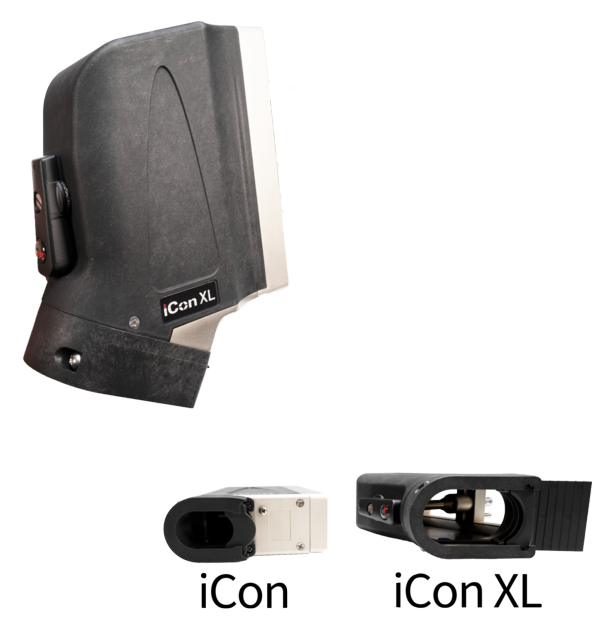

The iCon XL offers an extra-large u-shaped cable clamp that can hold cable bundles with an oblong bushing effective diameter of 1.95" and offers a cable bend radius of 1". Cable clamp can be inverted for smaller cable bundles.
Compatible with standard iCon receivers. Includes front protective cover. Keying feature requires purchase of separate keying kit p/n 310113461.
The iCon XL replaces obsoleted models 410123106, 410123116 and 410123122.
