510161115

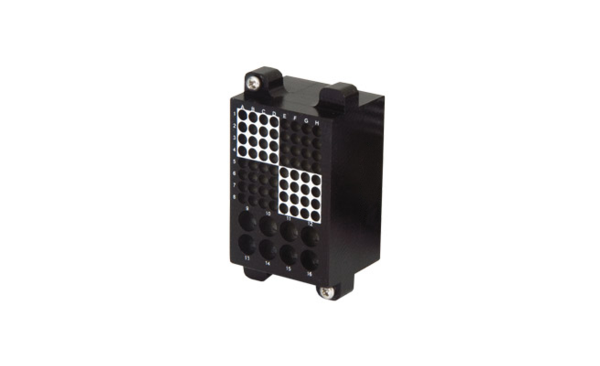

Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position

Specifications
Material FR4
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
UL-94 Flame Class V-0
Dielectric Withstanding Voltage (DWV) 1500 VDC min.
Available Contact Positions 64/8
Module Positions Needed 1

Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position

Primary mating module 510160115. (May mate with other Receiver modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - ITA

Part Number

Description

610102118

Coax, Contact, ITA, 20/26 GHz, Flex 402*
610102132

Coax, Contact, ITA, 75 Ohm HD, sm59/U Belden 1855A, 3 GHz
610110108

Signal, Contact, ITA, TriPaddle, 7 Amp, 20-24 AWG
610110129

Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
610110169

Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG

ITA

Part Number

Description

410123101

ITA, iCon, with Protective Cover
410123102

ITA, iCon, EMI-Shielded, with Threaded Coupling Adapter and Protective Cover
410123232

ITA, iCon, EMI, XL Backshell (XL Bend Radius and Cable Exit)
410128101

ITA, i1, with Protective Cover
410128102

ITA, i1, EMI , with Protective Cover
410128106

ITA, i1 XL, 1 Module,  XL Cable Exit
410131102

ITA, iDock Series, D1, 1 Module

Module - iCon/i1 Receiver

Part Number

Description

510160115

Signal / 20-26 GHz / 75 Ohm HD, Module, Receiver, TriPaddle, iCon Series, 64/8 Position

Receiver

Part Number

Description

310123103

Receiver, iCon, Reverse Module Configuration for iCon ITA Modules, with Protective Cover
