410123102

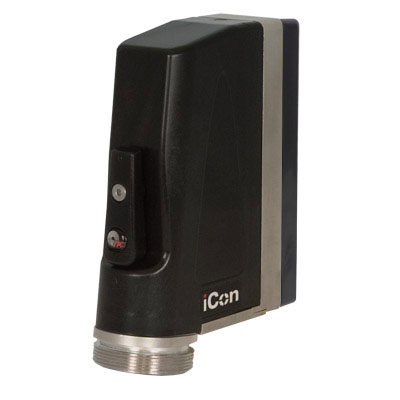

ITA, iCon, EMI-Shielded, with Threaded Coupling Adapter and Protective Cover

Specifications
Weight .65 lbs [.29 Kg]
without protective cover
Frame Material Nickel Plated Aluminum Alloy
Hardware Material Stainless Steel
Drive Unit Material Bronze and Stainless Steel
Plastic Components and Protective Cover Material Stainless Steel Filled Impact Modified Nylon
Cable Clamp Material Stainless Steel
Max. Cable Bundle Diameter 1.37"
Available Module Slots 2 Positions
Cycle Life

10,000 Cycles

Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 125° C

The iCon EMI has many of the standard features of the iCon, in addition to Electro-Magnetic Interference protection. The EMI shielding effect on the iConEMI ITA is provided by the stainless steel fibers in the removable plastic cover and threaded metal coupling adapter. The opening of the threaded coupling adapter provides clearance for a maximum cable bundle with an oblong bushing effective diameter of 1.37 in. Protective cover included.

The iCon EMI may be used with conduit harnessing assemblies, backshells and cable clamps. It comes standard with a 1.75-18 UNS male thread. Accessories are available from the vendors listed below.

For additional questions, please contact a Field Application Engineer

Glenair
Sunbank
Raychem
