Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

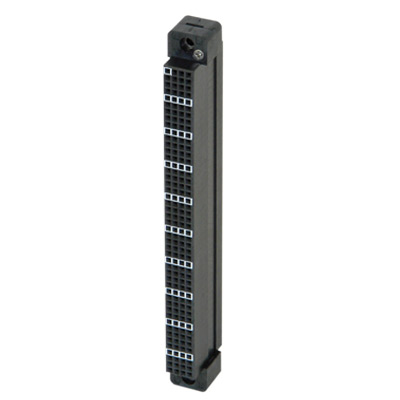

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position

Primary mating module 510151105. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.



Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610138216

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, Crimp

Module - 90 Series ITA

Part Number

Description

510151105

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
510151107

Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
510151121

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB
Mounting
510151124

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

Module - 90 Series Receiver

Part Number

Description

510150130

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
510150136

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)
510150137

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610138200 and 610138117)

Module Accessory Kit

Part Number

Description

VPC 510109366

Module Accessory Kit, Quantity 26, 4-40 x .625" Captive Socket Head Cap Screws
VPC 510150236

Module Accessory Kit, Quantity 24 2-56 x .31" Flat Head Phillips Screw

PCB Adapter- ITA

Part Number

Description

510109339

PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female SCSI Connector
510151123 PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female VHDCI Connectors
510151125 PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 6x32-Pin Ribbon Cable Headers

Strain Relief Plate

Part Number

Description

510109349

Strain Relief Plate, Receiver, QuadraPaddle, 192 Position
