510150136

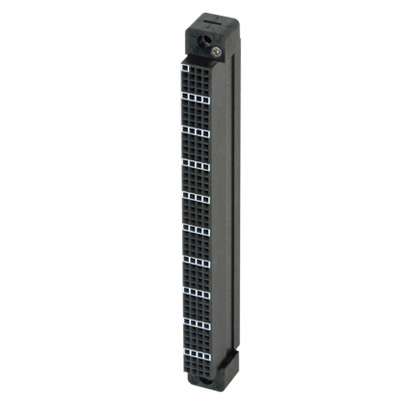

Signal Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (610 138 200 & 610 138 118)

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

Signal Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (610 138 200 & 610 138 118)



QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. Allowing flexible configuration options with standard commercial connectors, QuadraPaddle modules are designed to fit any VPC pin and socket-based Mass InterConnect system. Available in 192 and 480 contact positions, QuadraPaddle modules accept standard .100” (2.54mm) pitch headers, breadboards, and connectors for direct PCB, ribbon cable, and other connections as well as discrete wiring.
