510150137

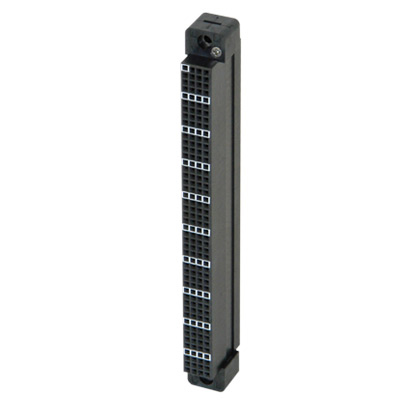

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts and Round Posts (610138200 and 610138117)

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
UL-94 Flame Class V-0
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Load w/ Twin Female Contacts and Round Posts (610138200 and 610138117)

Primary mating module 510151105. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610138117

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Round Post (Adapter Pin)
610138200

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

Module - 90 Series ITA

Part Number

Description

510151105

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
510151107

Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Round Posts (610138115)

*Mounting Screws NOT Included*
510151121

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB
Mounting
510151124

Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap w/ Anti-Rotation (610138122)

Module - 90 Series Receiver

Part Number

Description

510150115

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position
510150130

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts
510150136

Signal, Module, Receiver, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (p/n's 610138200 & 610138118)

Module Accessory Kit

Part Number

Description

VPC 510109366

Module Accessory Kit, Quantity 26, 4-40 x .625" Captive Socket Head Cap Screws
VPC 510150236

Module Accessory Kit, Quantity 24 2-56 x .31" Flat Head Phillips Screw

PCB Adapter- ITA

Part Number

Description

510109339

PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female SCSI Connector
510151123

PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female VHDCI Connectors
510151125 PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 6x32-Pin Ribbon Cable Headers

Strain Relief Plate

Part Number

Description

510109298

Strain Relief Plate, Receiver, 90 Series
