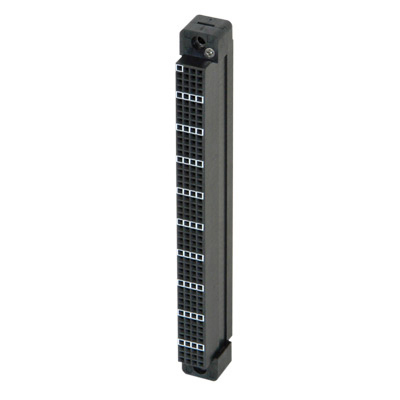

Signal Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded with Twin Female Contacts (610 138 200)

Specifications
Material Black Liquid Crystal Polymer
Temperature Range Operating • -55° C to 125° C
Non Operating • -65° C to 225° C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 192
Module Slots Needed 1

QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O in a compact assembly. Allowing flexible configuration options with standard commercial connectors, QuadraPaddle modules are designed to fit any VPC pin and socket-based Mass InterConnect system. Available in 192 and 480 contact positions, QuadraPaddle modules accept standard .100” (2.54mm) pitch headers, breadboards, and connectors for direct PCB, ribbon cable, and other connections as well as discrete wiring.

Add To Quote

Accessories and Related Parts

Contact - Receiver

Part Number

Description

610138100

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female
610138117

Signal Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Round Post
610138118

Signal Contact, Receiver, QuadraPaddle, 5 Amp, Male Adapter, .025" Square Post for Wire Wrap
610138200

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

Module - ITA

Part Number

Description

510151105

Signal Module, ITA, QuadraPaddle, 192 Position, Unloaded
510151107 Signal Module, ITA, QuadraPaddle, 192 Position, Fully Loaded with Round Posts (610 138 115)
510151121

Signal Module, ITA, QuadraPaddle, 192 Position, Right Angle Contacts for Custom PCB Mounting (510 151 107 and 510 109 316)
510151124

Signal Module, ITA, QuadraPaddle, 192 Position, Fully Loaded with Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

Module - Receiver

Part Number

Description

510109315

Header/Shroud Right Angle Kit, Receiver, QuadraPaddle, for Custom PCB Mounting (requires 510 150 130)
510150115

Signal Module, Receiver, QuadraPaddle, 192 Position, Wire Crimp, Unloaded
510150136

Signal Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap (610 138 200 & 610 138 118)
510150137 Signal Module, Receiver, QuadraPaddle, 192 Position, Fully Loaded with Twin Female Contacts and Round Posts (610 138 200 and 610 138 117)
510150152

Signal Module, Receiver, QuadraPaddle, 192 Position, Right Angle Contacts for Custom PCB Mounting (510 150 130 and 510 109 315)

Module Accessory Kit

Part Number

Description

VPC 510109359

Module Accessory Kit, 26 4-40x .750" Socket Head Cap Screws

PCB Adapter

Part Number

Description

510109339

PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female SCSI Connector
510151123 PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 2x68 Pin Female VHDCI Connectors
510151125 PCB Adapter, ITA, QuadraPaddle, 192 Position, to PCB-Mounted 6x32-Pin Ribbon Cable Headers

Strain Relief Plate

Part Number

Description

510109349

Strain Relief Plate, Receiver, QuadraPaddle, 192 Position
