510160101

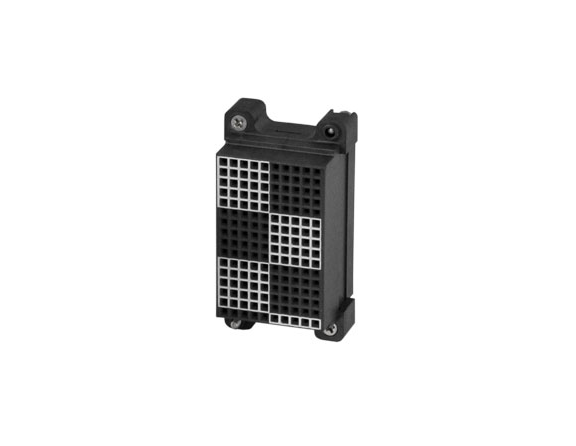

Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
| Specifications | |
|---|---|
| Material | Black High-Temp Thermoplastic |
| Temperature Range | Operating: -55°C to 125°C Non Operating: -65°C to 220 °C |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Available Contact Positions | 160 |
| Module Positions Needed | 1 |
Signal , Module, Receiver, QuadraPaddle, iCon Series, 160 Position, for crimp contacts
Primary mating module 510161101. (May mate with other ITA modules, as well.)
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
