510160105

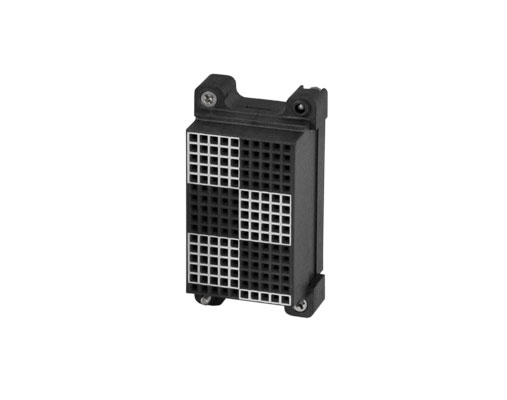

Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts

Specifications
Material Black High-Temp Thermoplastic
Temperature Range Operating:
-55°C to 125°C
Non Operating:
-65°C to 220°C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 160
Module Positions Needed 1

Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, loaded w/ twin female contacts

Comes fully loaded with twin female contacts ( p/n 610138200)

QuadraPaddle modules are molded on .100” (2.54 mm) centers to meet the need for high-density I/O.

 Primary mating module 510161101. (May mate with other ITA modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
