510160134

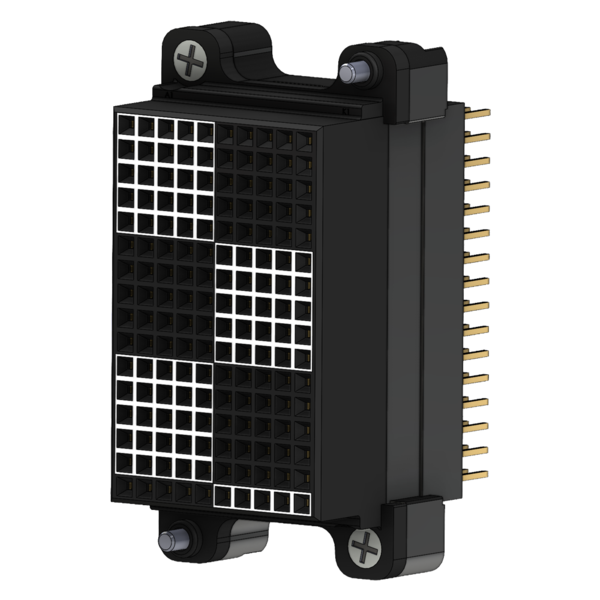

Signal, Module, Receiver, QuadraPaddle, iCon Series, 160 Position, Fully Loaded w/ Twin Female Contacts & Square Posts for Wire Wrap
| Specifications | |
|---|---|
| Material | Black High-Temp Thermoplastic |
| Temperature Range | Operating: -55ºC to 125°C Non Operating: -65°C to 220ºC |
| UL-94 Flame Class | V-0 |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Available Contact Positions | 160 |
| Module Positions Needed | 1 |
Primary mating module 510161101. (May mate with other ITA modules, as well.)
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
