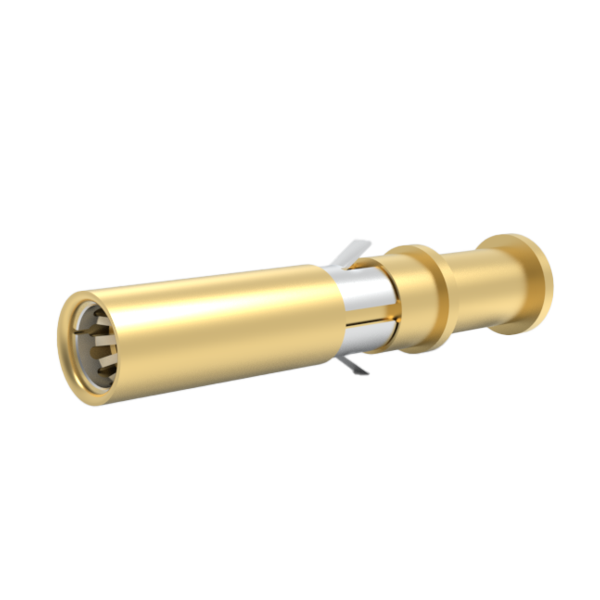

Micro Power, Contact, Receiver, 21 Amp, 12-14 AWG
Specifications | |
---|---|
Operating Current | 21 amps continuous |
Contact Resistance | 1.5 mOhms max. |
Dielectric Withstanding Voltage (DWV) | 1500 VDC min. |
Contact Body | Brass |
Contact Plating | 30µ" Au over 100µ" Ni |
Contact Termination | Crimp |
Cycle Life | 10,000 cycles |
RoHS Directive 2011/65/EU Status | Compliant |
REACH Article 33 Status | Compliant |
ECHA Article 59 of Reach Regulation | Compliant |
AVG Mating Force (lbs) | 1.23 |
Micro Power, Contact, Receiver, 21 Amp, 12-14 AWG
Primary mating contact 610143101. (May mate with other ITA contacts, as well.)
