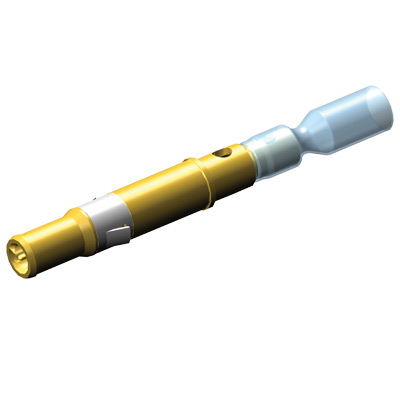

Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
Mechanical Specifications | |
---|---|
Durability | 20,000 cycles |
Contact Material | Shield – Brass Center Conductor – BeCu |
Contact Plating | Shield – 50µ" Au over 100µ" Ni Center Conductor – 60µ" Au over 100µ" Ni |
Contact Termination | Solder Sleeve |
Insulator | PTFE |
Mating Force | 1.5 lbs max [0.68 kg] |
Electrical Specifications | |
Characteristic Impedance | 50 Ω |
Frequency Range | DC to 2 GHz |
VSWR | ≤ 1.2 @ 2 Ghz |
Insertion Loss | ≤ 0.05 dB @ 500 Mhz ≥ -0.3 dB @ 2 Ghz |
DWV | 1500 VDC Min. |
Contact Resistance | < 5 mΩ @ 0.5 Amp & always < 10 mΩ |
Cable Specifications | RG316 & RG178 |
Environmental Specifications | |
Operating Temperature | -50°C to +105°C |
Insulation Resistance | 1000 MΩ min. |
Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
