610110000

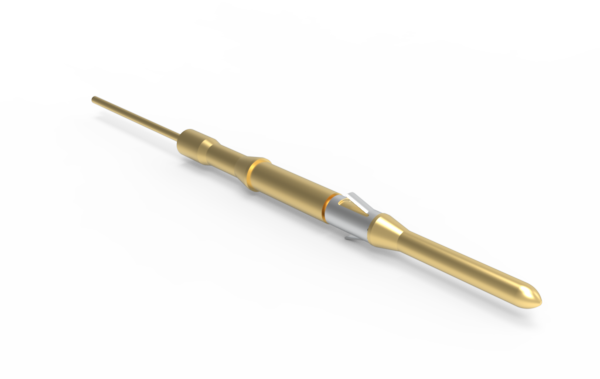

Signal, Contact, ITA, TriPaddle, Round Post, PCB Mount
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Max. Continuous (20 AWG) 600 Volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 4 mOhms Max. Measured at 50 mV @ 100 mA |
| AVG Mating Force(lbs) | 0.41 |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 4000 MOhms Min. |
| Contact Body | BeCu |
| Contact Plating | 30µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
Signal, Contact, ITA, TriPaddle, Round Post, PCB Mount
Primary mating contact 610110179. (May mate with other ITA contacts, as well.)
