610138122

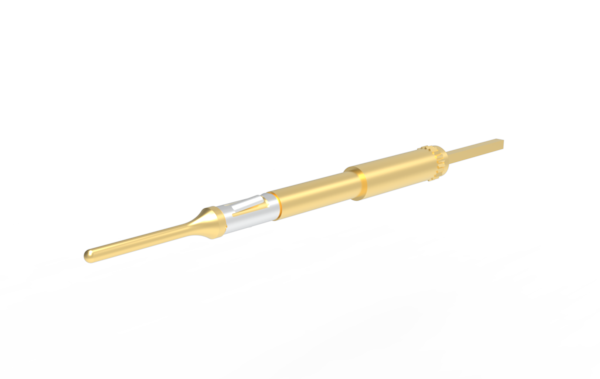

Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Square Post for Wire Wrap with Anti-Rotation
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 25 mOhms Max. Measured at 50 mV @ 100 mA |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 5000 MOhms Min. |
| Contact Body | Brass |
| Contact Plating | 30µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs) | 0.24 |
Signal, Contact, ITA, QuadraPaddle, 5 Amp, .025" Square Post for Wire Wrap with Anti-Rotation
Primary mating contact 610138200. (May mate with other Receiver contacts, as well.)
Available in twin-female, crimp/solder, twin male, and wire-wrap design, QuadraPaddle contacts are engineered for flexible interconnect options. Rated at 5 amps continuous (1250 VAC) with a 2 ounce insertion force, QuadraPaddle contacts provide 4 reliable points of contact per pin, outstanding electrical performance, and low mating force.
