310104437
Receiver, 9025, 25 Module, for Slide Mounting (slide kit required)
| Specifications | |
|---|---|
| Weight | 18.3 lbs. [8.3 kg] |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch Material | Stainless Steel |
| Mounting Flange, Instrument Bracket Material | Aluminum |
| Available Module Slots | 25 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | 80 lbs. @ 12” [36 kg @ 30.5 cm] |
| Max. Mating Force | 1102 lbs. [499.9 kg] |

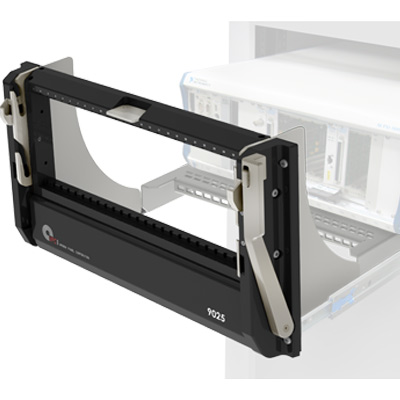

The 9025 is a 25 module receiver designed to fit into a standard 19" rack. It is equipped with a locking handle to ensure proper ITA engagement. An included integrated microswitch shuts off power when the ITA disengages from the receiver. This receiver is designed to work with a slide kit, includes mounting flanges and an instrument bracket. A slide kit is required, but not included.
*Please note: Consult procedure sheet/user manual for information regarding slight slide mechanism bracket protrusion downward into next U height on test rack on both sides of receiver.
