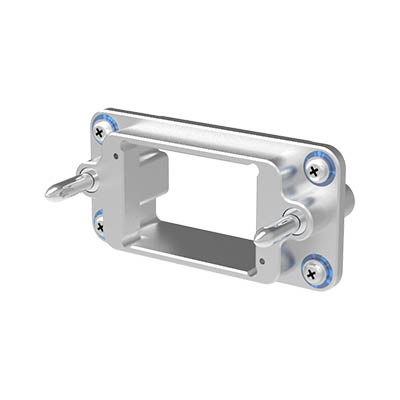

410131102

Featured
Online Tools
Receivers/ITAs
iSeries

Modular, configurable handheld solutions offering a variety of I/O protocols

iCon

Two Module connector

Engages up to 320 signal contacts

i1

Single Module connector

Engages up to 160 signal contacts

i2 MX

Modular, configurable signal connector

Offers EMI Protection

i2 Micro iCon

High density modular, configurable signal connector

Engages up to 168 signal contacts

iSeries XL

XL-sized iSeries ITAs

Larger backshells & cable exits
Low - Medium I/O Solutions

VPC's most popular low - medium I/O solutions offering 2-18 module capacity

G2

Configured for up to 2 modules

Engages up to 480 signal contacts

G3

Configured for up to 3 modules

Engages up to 672 signal contacts

G6

Configured for up to 6 modules

Engages up to 1,440 signal contacts

G6x

Configured for up to 9 modules

Engages up to 1,920 signal contacts

G10

Configured for up to 10 modules

Engages up to 2,400 signal contacts

G12

12 Module Solution

VPC's Most Popular Interconnect Solution

G10x

Configured for up to 15 Modules

Engages up to 3,200 signal contacts

G12x

Configured for up to 18 modules

15" or 20" platforms available

G18

18 Module Solution

Compatible with VPC 90 Series Modules
High I/O Solutions

VPC's most popular high I/O solutions offering 25-75 module capacity

9025

Ideal for Rack Mount Applications

Configured for up to 25 Modules

9025TR

High I/O Platform Solution

Configured for up to 25 Modules

9025 VXI

25 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards

9050

High I/O System Ideal for Rack Mount Applications

Configured for up to 50 Modules

9050TR

High I/O Platform Solution

Configured for up to 50 Modules

9050 VXI

50 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards

9075

3 Tier, 75 Module Solution

Compatible with VPC 90 Series modules
Platform

The addition of a receiver platform helps to provide easier ITA/ Receiver engagement, proper alignment, and ITA enclosure support.

S6

Engages up to 1,440 signal contacts

Only 1U rack height

G12

Configured for up to 12 modules

15" or 20" platforms available

G12x

Configured for up to 18 modules

15" or 20" platforms available

9025TR

Configured for up to 25 modules

Compatible with VPC 90 Series modules

9050TR

2-Tier, 50 Module Solution

Compatible with VPC 90 Series Modules
Pull Thru Solutions

Allows pull through removal of connector modules and instrumentation from chassis backplane

G20

Configured for up to 20 modules

Mate over 2,000 signal points

G20x

Configured for up to 28 modules

Can be used with PXI pull-thru adapters

G40x

Configured for up to 48 modules

Can be used with PXI pull-thru adapters

Pull-Thru Adapters

Quick wired or PCB connection from instrument to receiver

Consolidate wiring for direct card connections
Docking / ATE

VPC’s iDock Series features engageless frames for use with automatic test handling equipment to mate test adapters. Automatic docking connectors greatly reduce testing time and increase accuracy.

D1

Engages up to 160 signal contacts

Configured for 1 Module

D3/D4

Engages up to 672 signal contacts

Configured for 3 or 4 Modules

D12

Engages up to 2,880 signal contacts

Configured for up to 12 Modules

D16

Engages up to 3,840 signal contacts

Configured for up to 16 Modules
Accessories

Extraction Tools

Interconnect Adapters

Screw Kits

Slide Kits

Strain Relief

Tools
Contacts
Signal

VPC offers two types of signal contacts ideal for low voltage and low current applications.

QuadraPaddle Signal

5 Amp

22-28 AWG

TriPaddle Signal

7 Amp

20-24 AWG
High Speed Digital

VPC’s line of high speed inserts are designed to address the needs of test systems utilizing high speed data applications.

VTAC Insert

Data rate 12.5+ Gbps/ Diff pair

Only available in patchcords

VTAC Right Angle Insert

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Insert

12.5+ Gbps/ Diff pair

PCB to VTAC
Power

VPC’s line of power contacts are designed for high current applications and vary in amperage up to 500+ Amps.

Micro Power

21 Amp

12-14 AWG

Mini Power

65 Amp

8 AWG

High Power

150 Amp

2 AWG

High Current

500+ Amp (1500A typical low duty cycle applications, 1500VDC or Peak AC)

350MCM Wire
Coax

VPC offers an impressive line of coax contacts ideal for a wide range of RF applications.

50 GHz Micro

50 Ohm

Only available as a patchcord

40 GHz Contact

50 Ohm

2.92 mm

20/26 GHz

50 Ohm

DC to 26 GHz

50/75 Ohm Micro

3-10.5 GHz

RG 316, RG 178, RG 179

75 Ohm HD

75 Ohm HD

3 GHz

75 Ohm

DC to 3 GHz

RG179

50 Ohm Mini

50 Ohm

1-2 GHz
Twinax

VPC twinax contacts provide differential voltage options most commonly used in digital and data applications.
Fiber Optic

VPC fiber optic patchcords are available in Polymer Optical Fiber and Multimode. We also have the capability to provide specialty fiber optic patchcords and cables.

POF

For low speed, short distance needs

5,000 mating cycles

Multimode

For high speed needs

5,000 mating cycles
Thermocouple

VPC thermocouple contacts offer match pairing for K-type and T-Type thermocouples.

Chromel, Type K(°C)

Alumel, Type K(°C)

Constantan, Type T(°C)

Copper, Type T(°C)
Pneumatic

VPC pneumatic contacts are ideal for air pressure applications such as industrial automation.

Mini

100 PSI Rating

20,000 mating cycles

1/8" ID

100 PSI Rating

20,000 mating cycles

3/8" ID

100- 250 PSI Rating

20,000 mating cycles
Modules
Modules - Contact Type

Choose the module type needed by the VPC contact type being used.

Signal Modules

High Speed SIM Modules

Power Modules

Coax Modules

Twinax Modules

Fiber Optic Modules

Thermocouple Modules

Pneumatic Modules

Vacuum Modules

Modules - Product Series

Choose the module type by VPC product line.

90 Series Modules

iCon Series Modules

i2 MX Modular Inserts

Snap-In-Module (SIM) Inserts
PCB Solutions
Wired Solutions
Standard Patchcords

VPC's standard and stocked patchcords make getting patchcords easy and with quick turnaround times.

Signal

5-7 Amps

36" and 72" lengths

Power

Up to 40 Amps

36" lengths

Coax

Up to 50 Ohms

36" lengths

VTAC

Multiple protocols

Custom configurations
Wired SIM Solutions

• Pass-thru technology
• VTAC, QuadraPaddle, Micro Power / Micro Coax, 20/26 GHz Coax

Enclosures

VPC's in-house wiring team has the experience and know-how to build and assemble complete discrete-wired enclosures.

Wiring Services

VPC's Wiring services provide engineered, finished and quality-tested cables assemblies and patchcords to help complete your test system.
Resources
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

Tech Tips

Performance Specs

Online Tools

Videos

Regulatory, Compliance & Certifications
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

assets

Tech Tips

assets

Performance Specs

Online Tools

Videos

Regulatory, Compliance & Certifications

assets

Specifications
Weight	.2lb [0.9 Kg]
Frame Material	Nickel Plated Aluminum
Guide Pin Material	Heat Treated Stainless Steel
Floating Bushing Material	Nylon
Internal Bushing Material	Stainless Steel
Operating Temperature	-55° C to 110° C
Cycle Life Rating	100,000 Mating Cycles
RoHS Directive 2011/65/EU Status	Compliant
REACH Article 33 Status	Compliant
ECHA Article 59 of Reach Regulation	Compliant

	Part Number	Description
	510161101	Signal, Module, ITA, QuadraPaddle, iCon Series, 160 Position
	510161102	Signal / Mini Power/ Mini Coax, Module, ITA, QuadraPaddle, iCon Series, 100/8 Position
	510161103	Signal / Mini Power/ Mini Coax, Module, ITA, TriPaddle, iCon Series, 64/8 Position
	510161104	Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
	510161106	Micro Power/ Micro Coax, Module, ITA, iCon Series, 40 Position
	510161107	Signal / Micro Power/ Micro Coax, Module, ITA, QuadraPaddle, iCon Series, 100/15 Position
	510161108	Signal, Module, ITA, TriPaddle, iCon Series, 96 Position
	510161109	Signal / Twinax, Module, ITA, TriPaddle, iCon Series, 40/4 Position
	510161110	Thermocouple, Module, ITA, iCon Series, 96 Position
	510161111	Signal/ Micro Power/ Micro Coax, Module, ITA, TriPaddle, iCon Series, 24/30 Position
	510161114	20/26 GHz/ 75 Ohm HD/ Coax, Module, ITA, iCon Series, 18 Position
	510161115	Signal/ 20-26 GHz/75 Ohm HD/ Coax, Module, ITA, TriPaddle ,iCon Series, 64/8 Position
