610110113

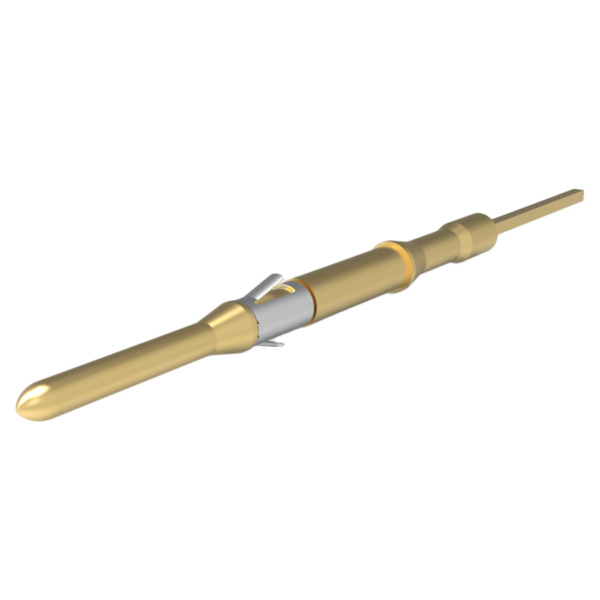

TriPaddle Signal, Contact, ITA, 7 Amp, .025" Square Post for Wire Wrap, 30µ" Gold
| Specifications | |
|---|---|
| Operating Voltage & Current | 7 Amps Max. Continuous (20 AWG) |
| Contact Resistance | 4 mOhms Max. Measured at 50 mV @ 100 mA |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 4000 MOhms Min. |
| Contact Body | Brass |
| Contact Plating | 30µ” Au over 100µ” Ni |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs) | 0.41 |
TriPaddle Signal contacts carry up to 7 amperes (22 AWG wire) or 10 amperes (14 AWG wire) continuous and can carry pulsed current up to 15 amperes at a maximum duration of 800 milliseconds. Resistance ranges from .002-.004 Ohms. Superior performance is achieved with VPC's patented Tri-Paddle design.
